220/2 Booster Set 320 Bar Final Pressure

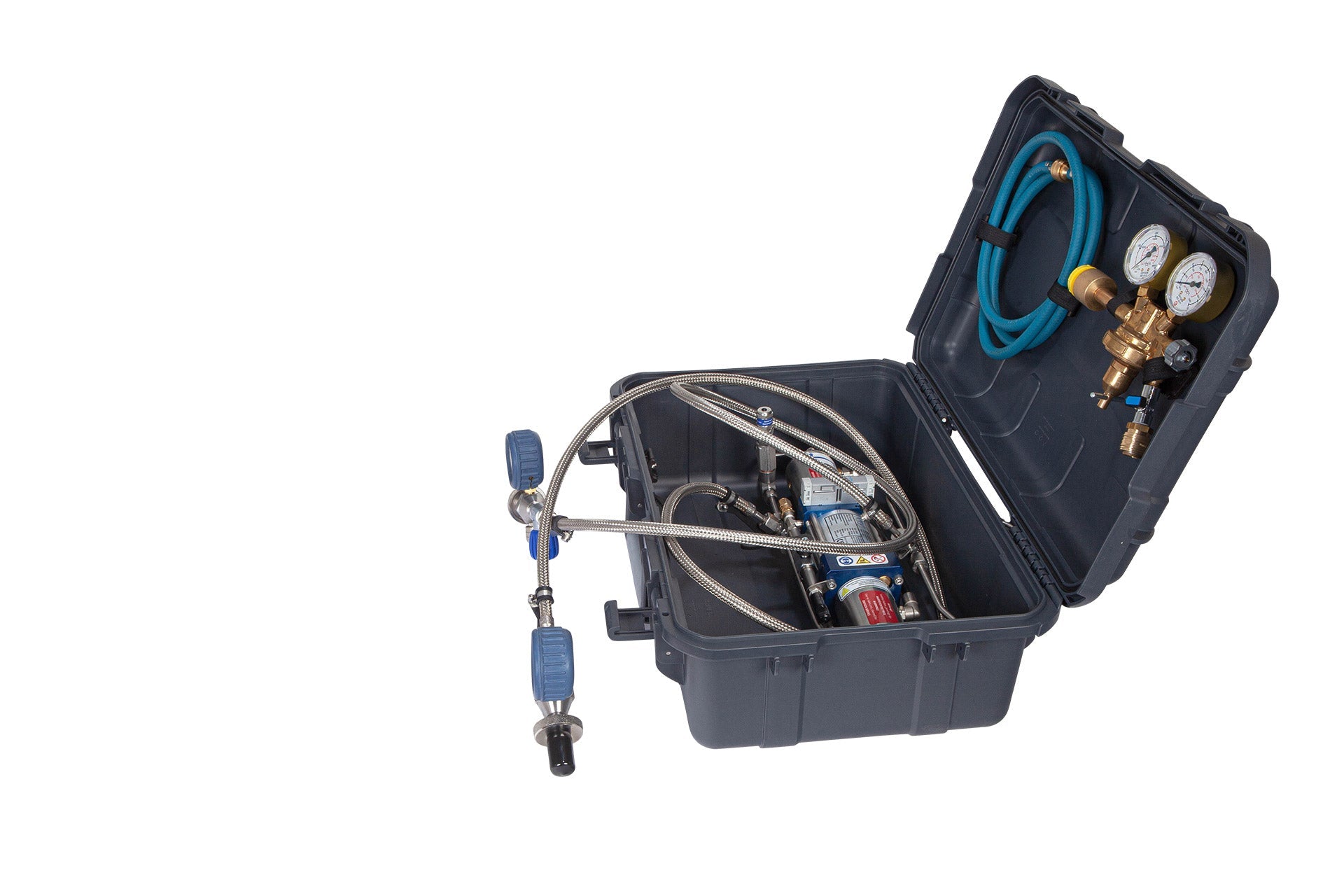

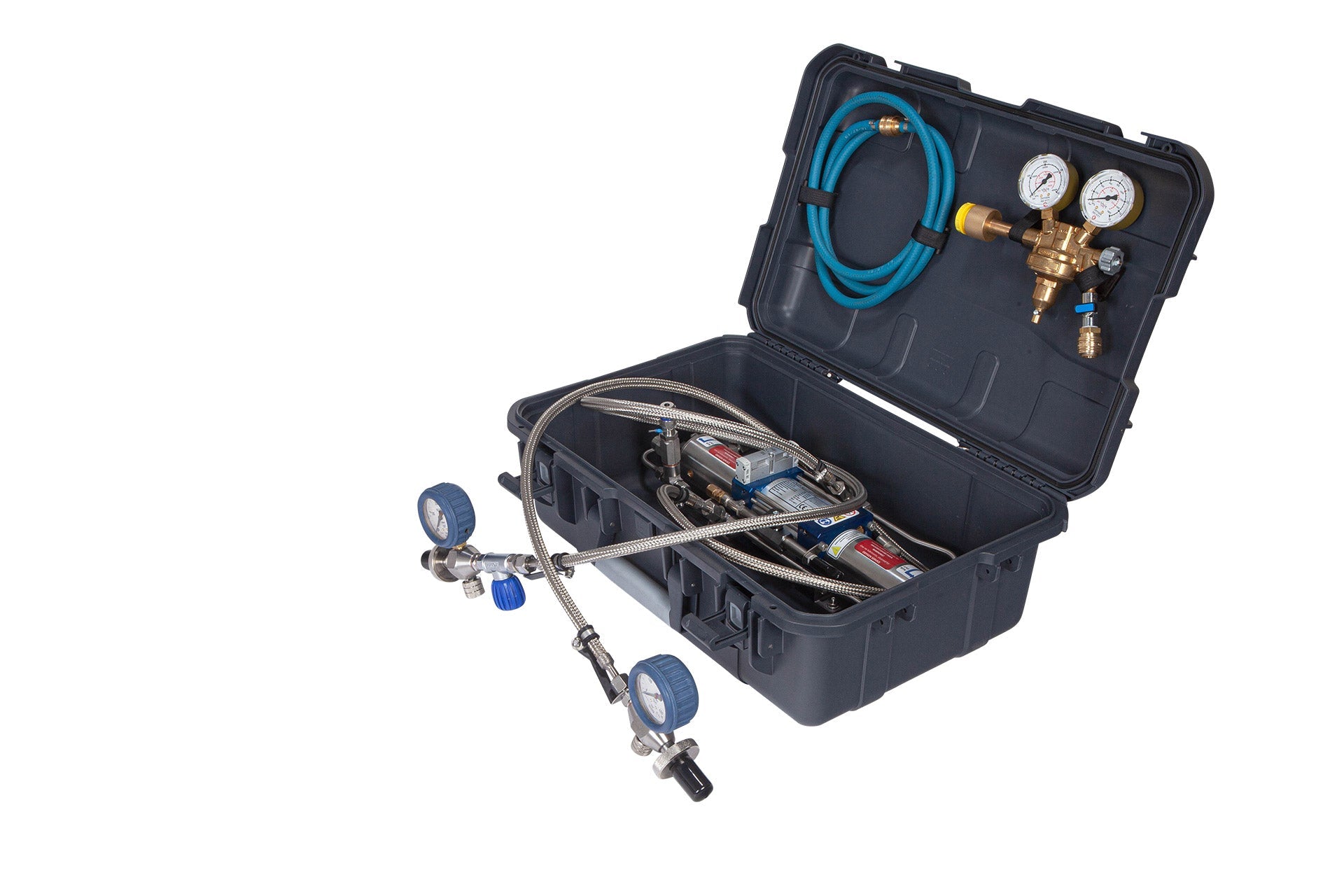

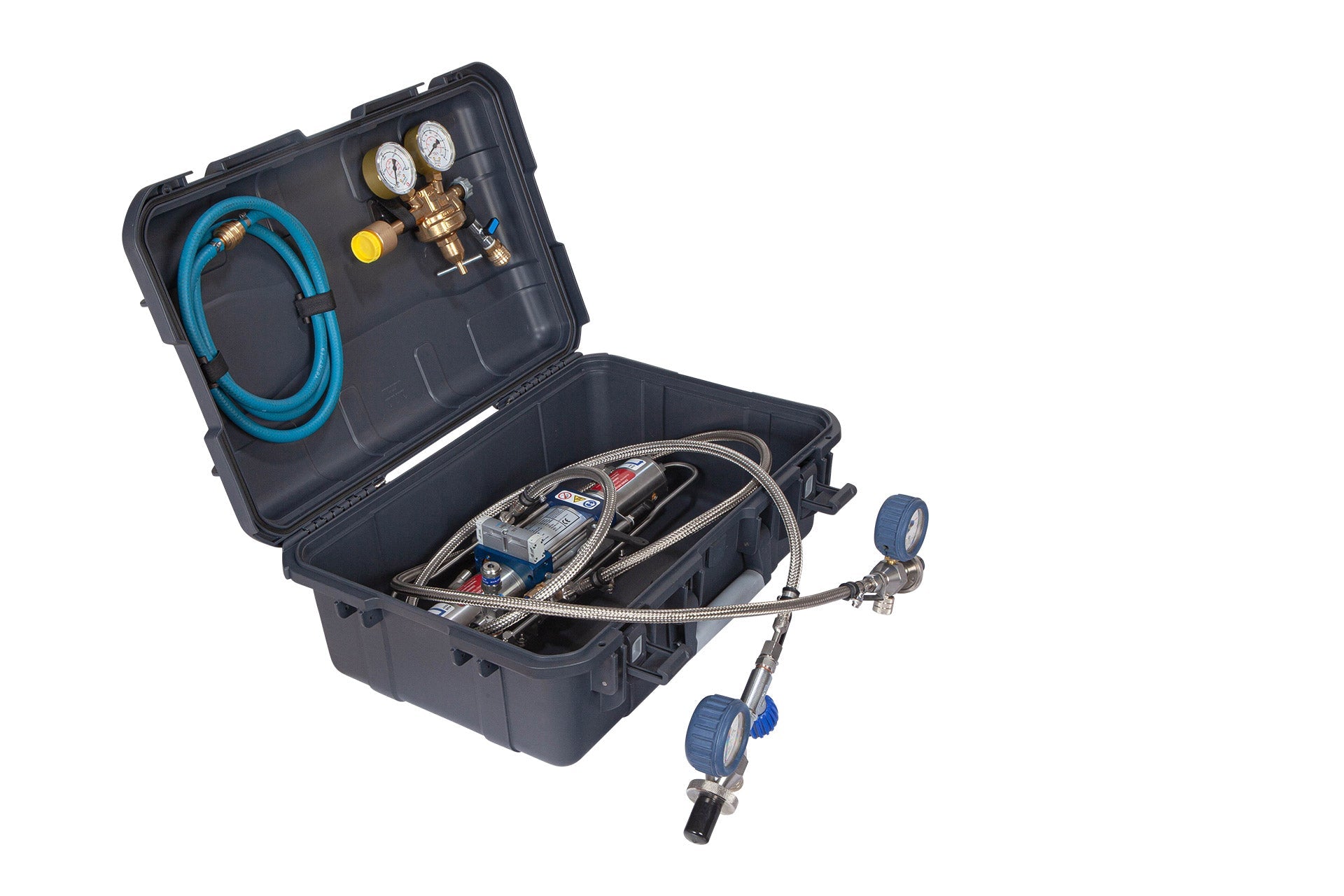

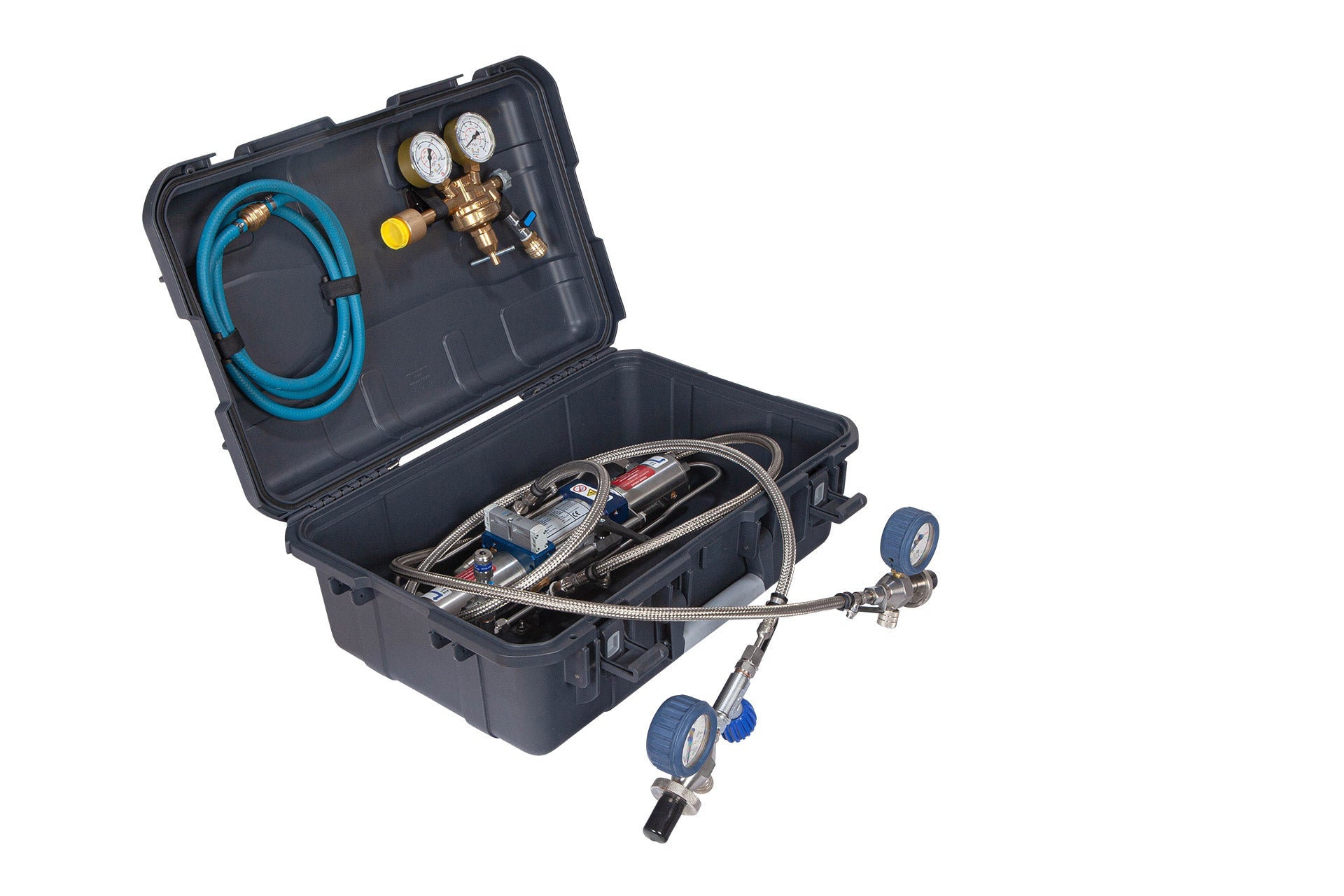

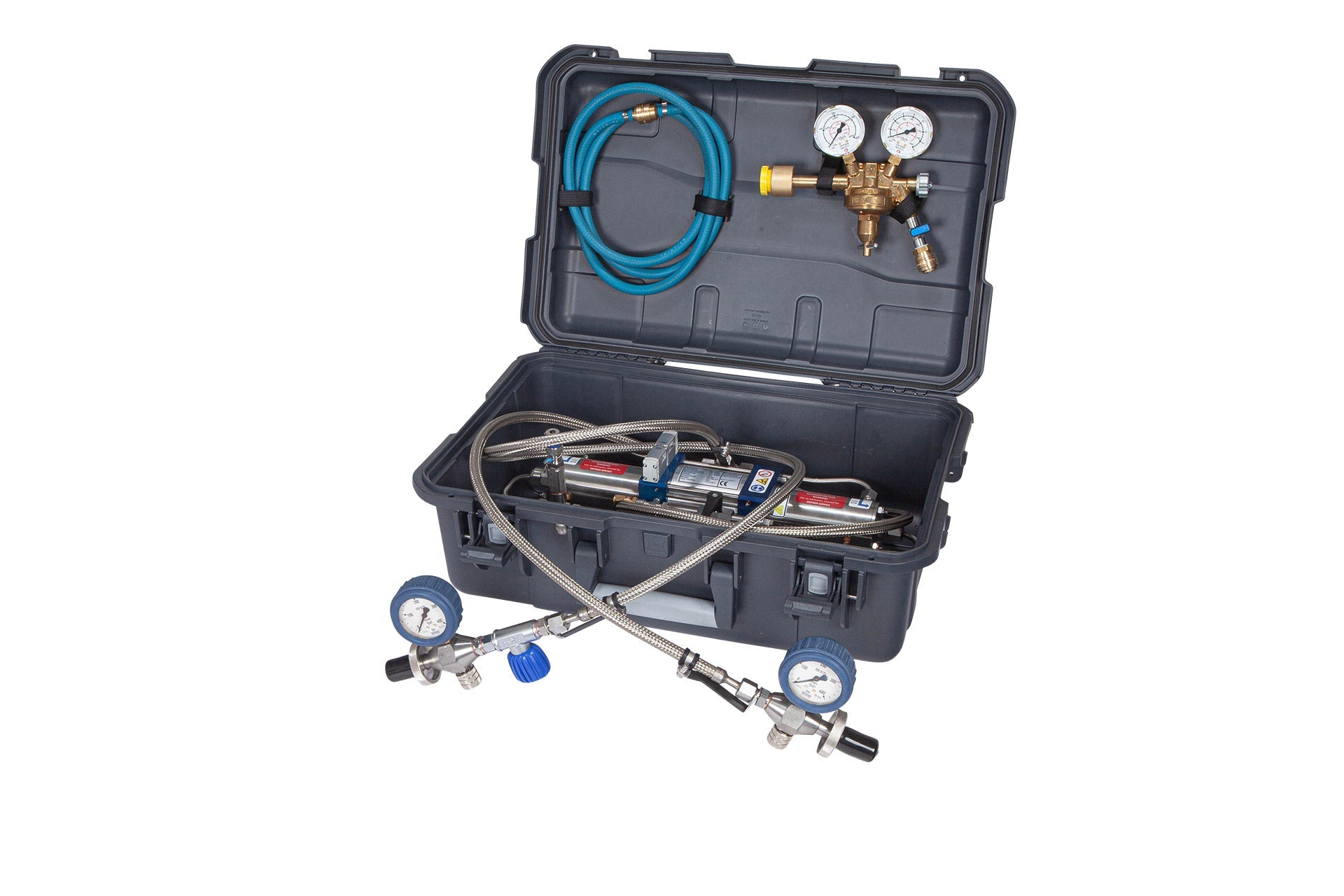

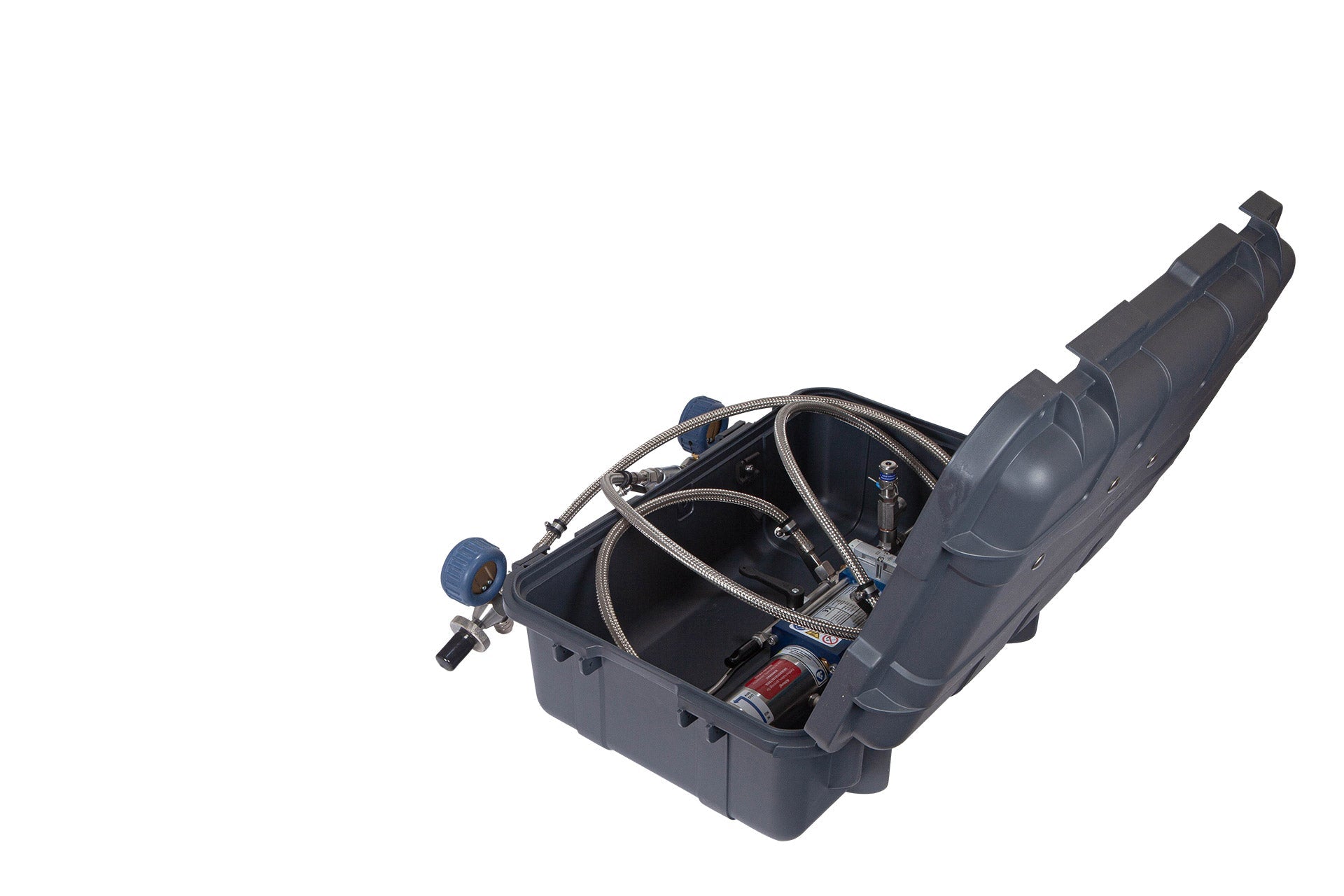

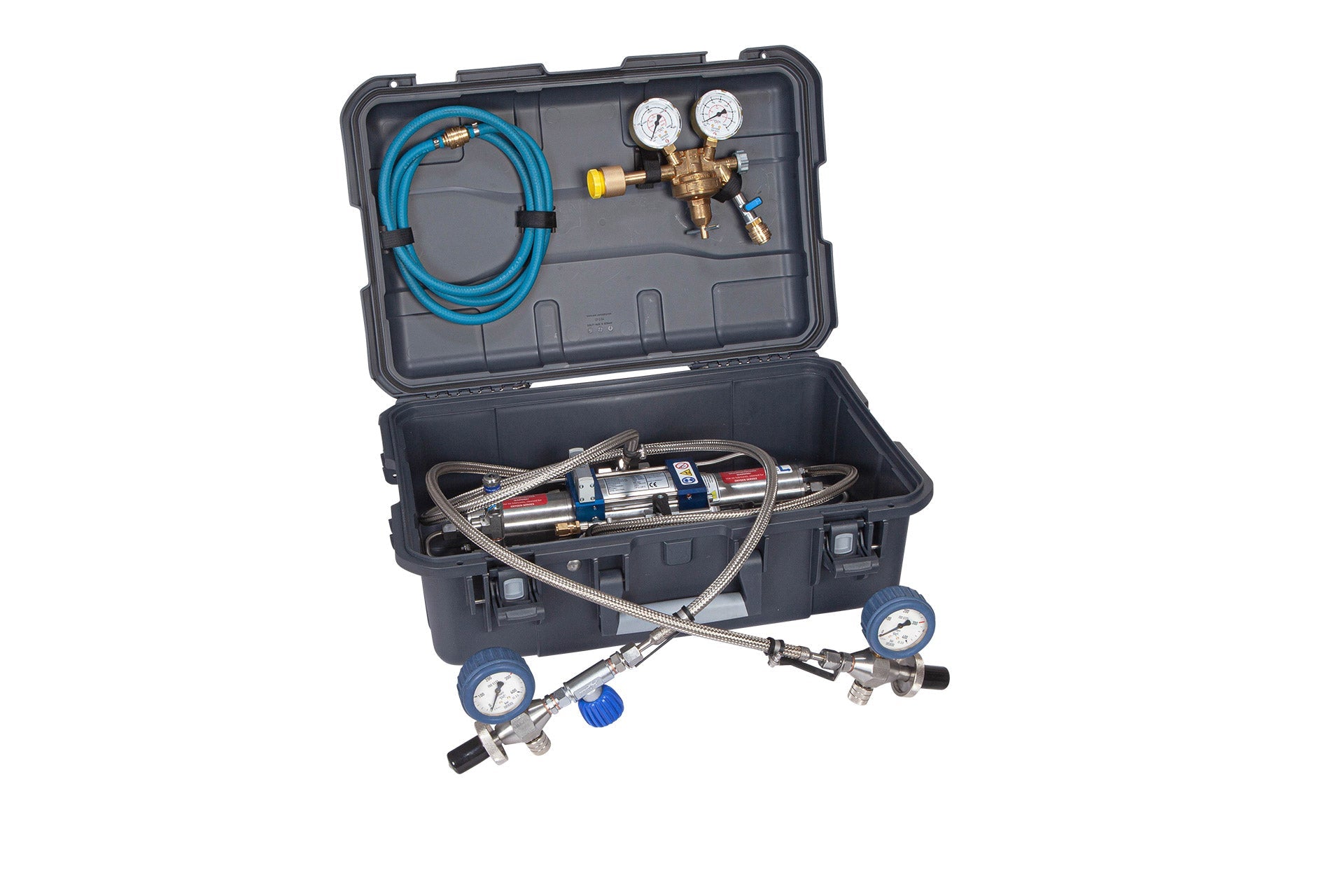

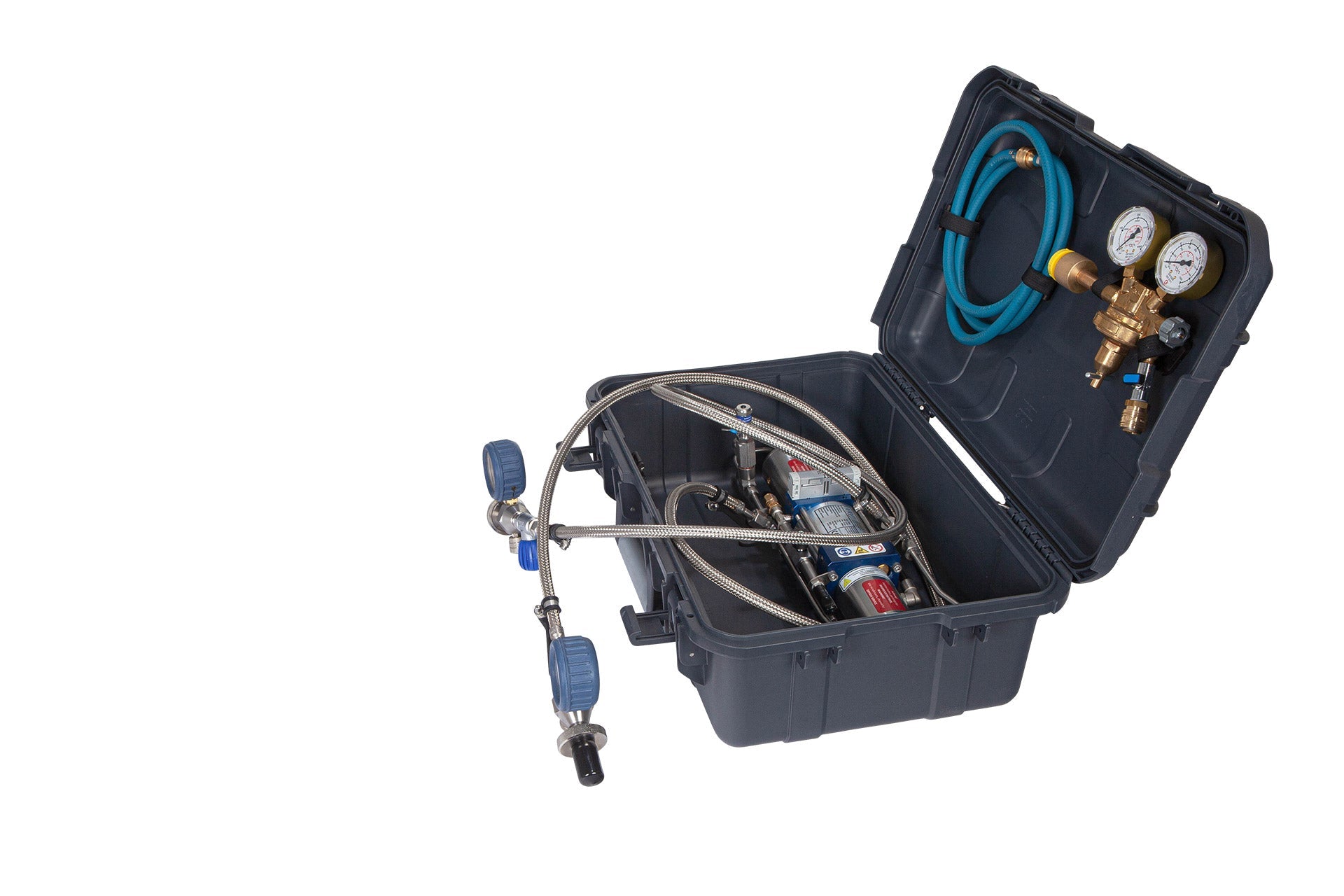

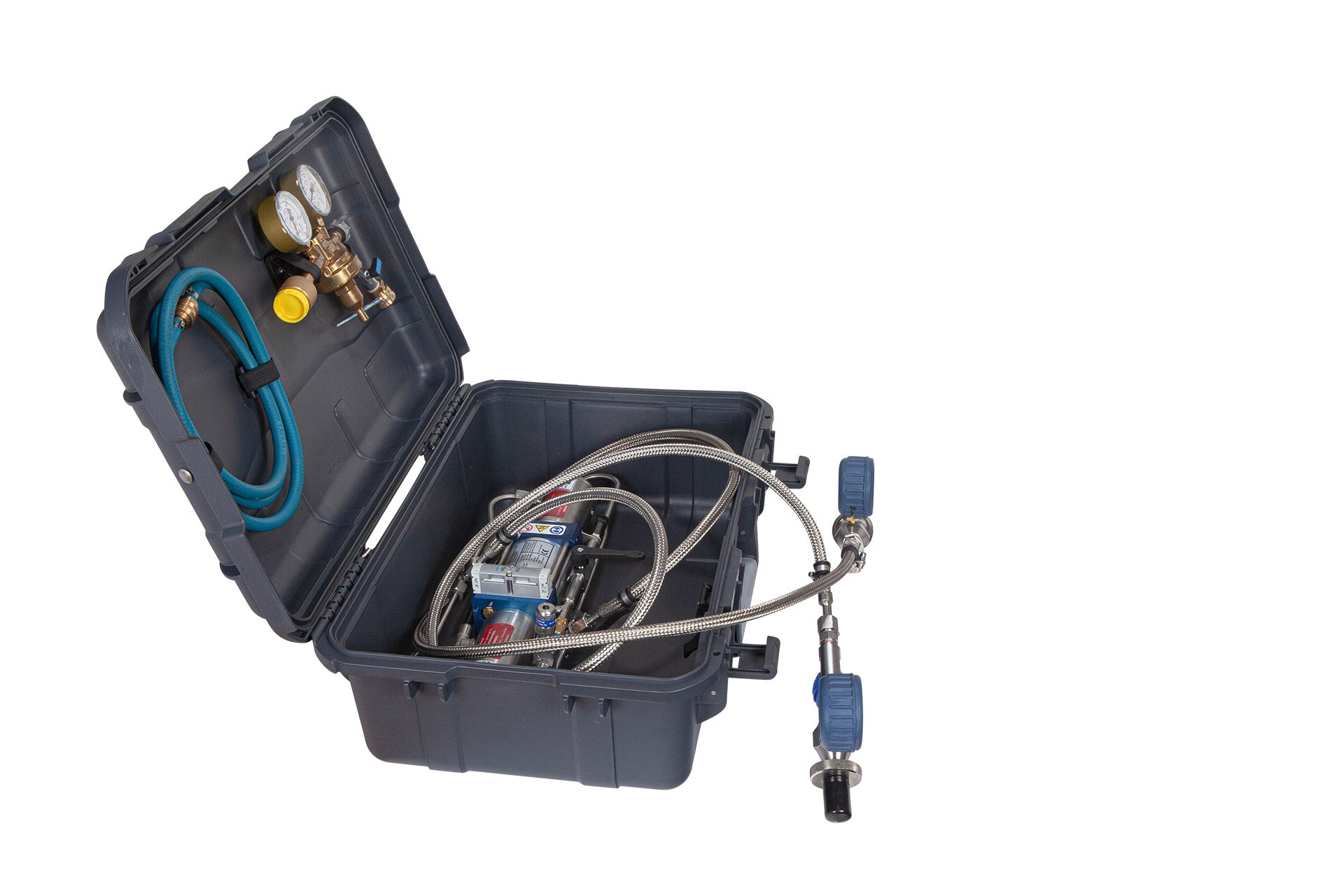

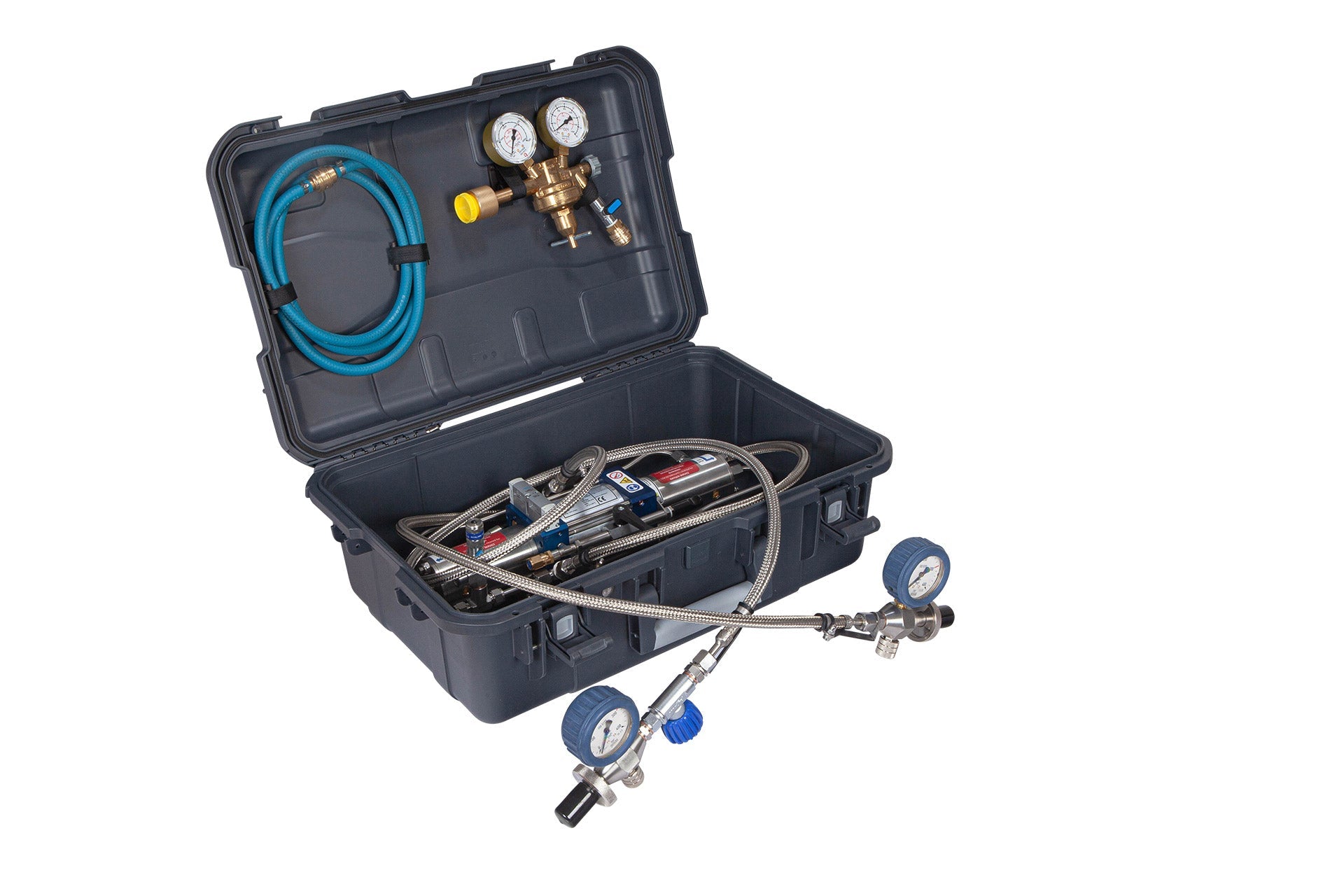

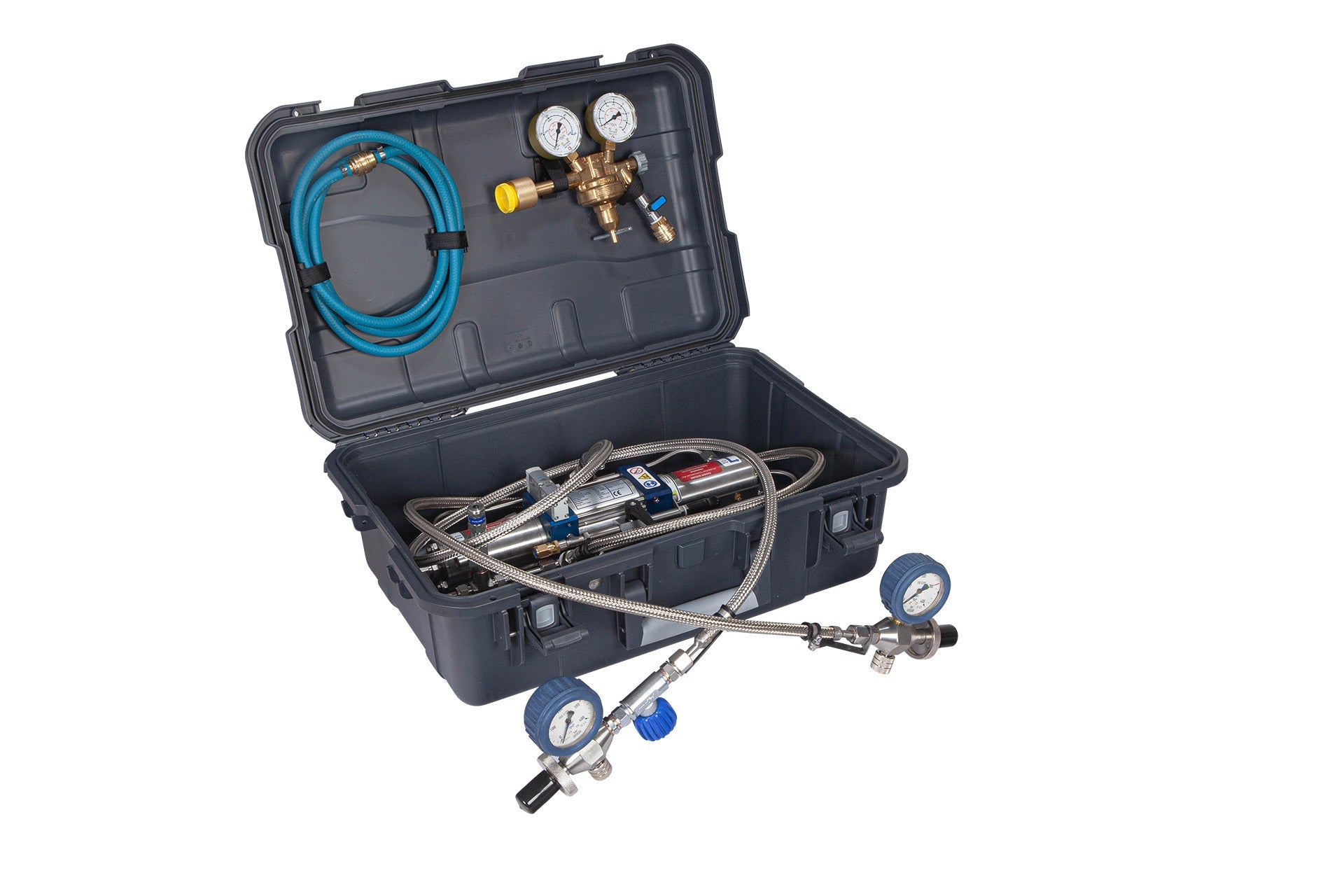

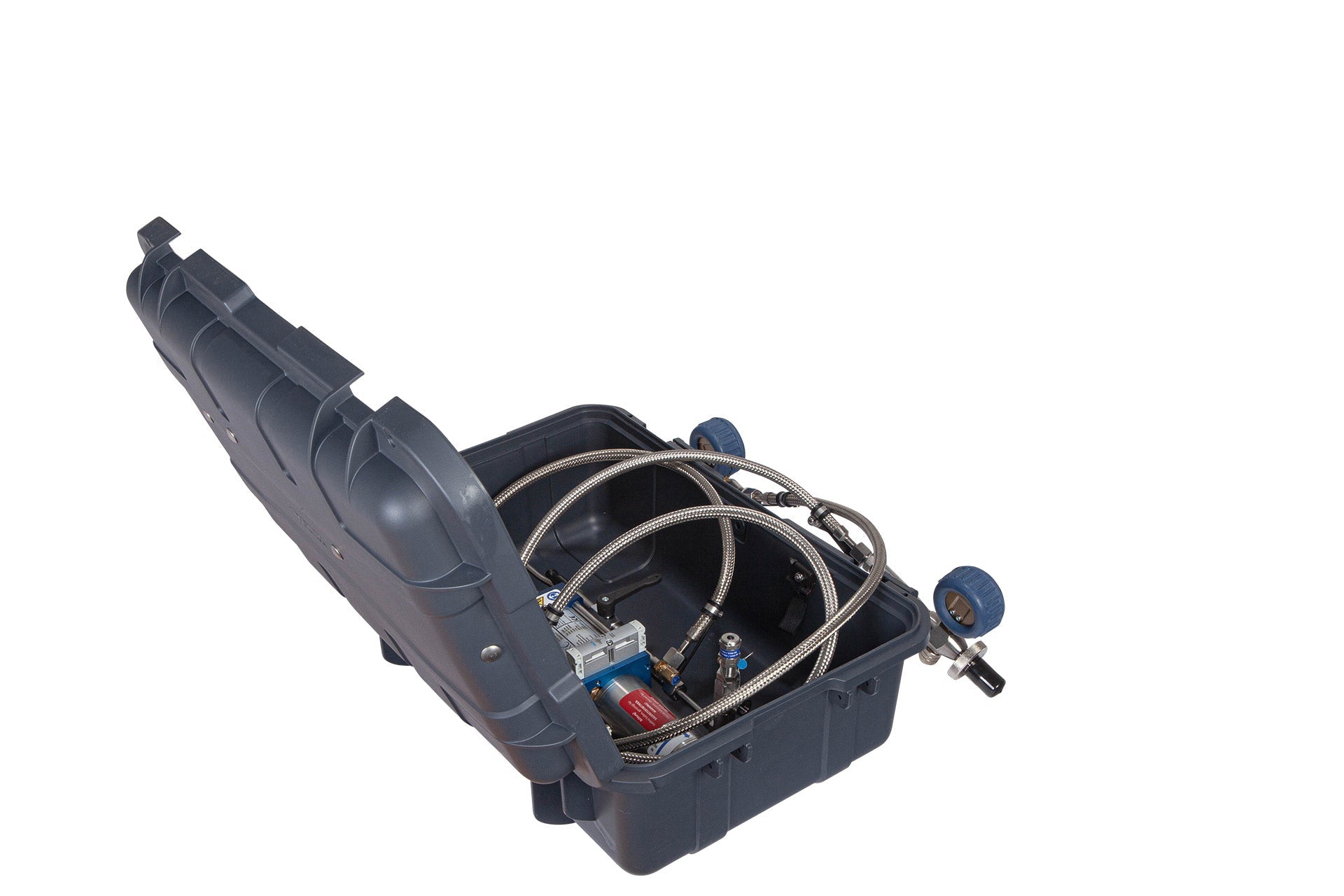

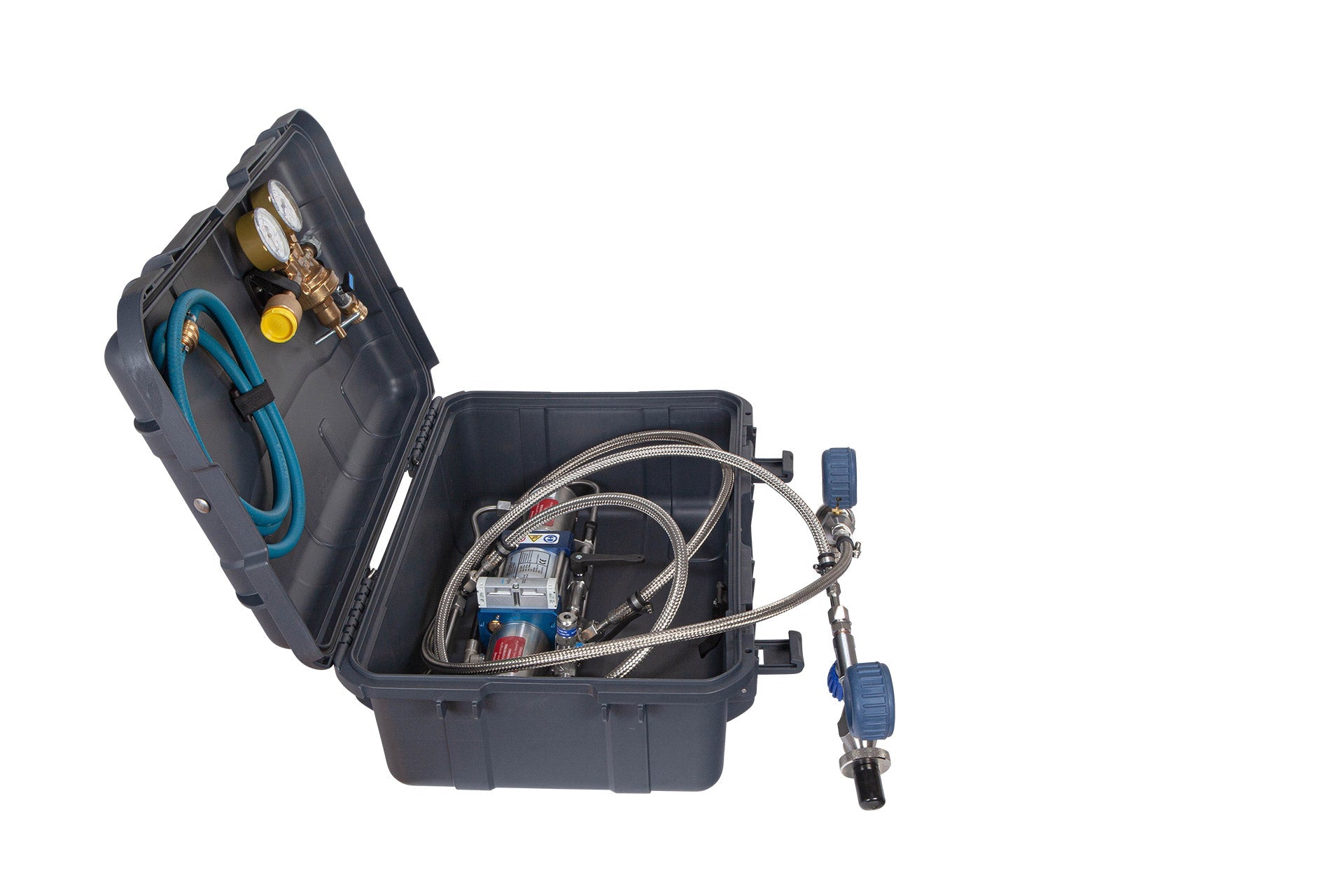

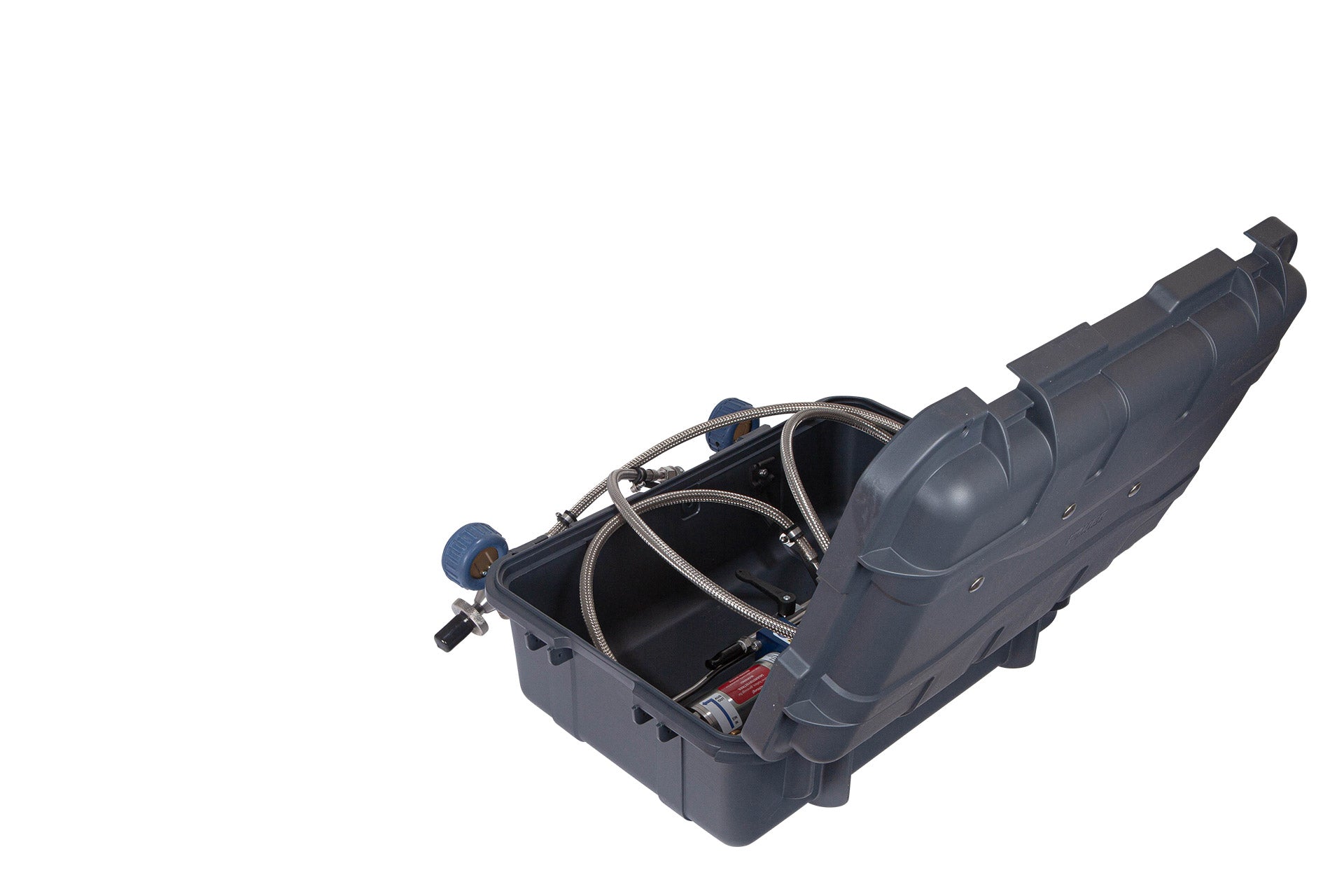

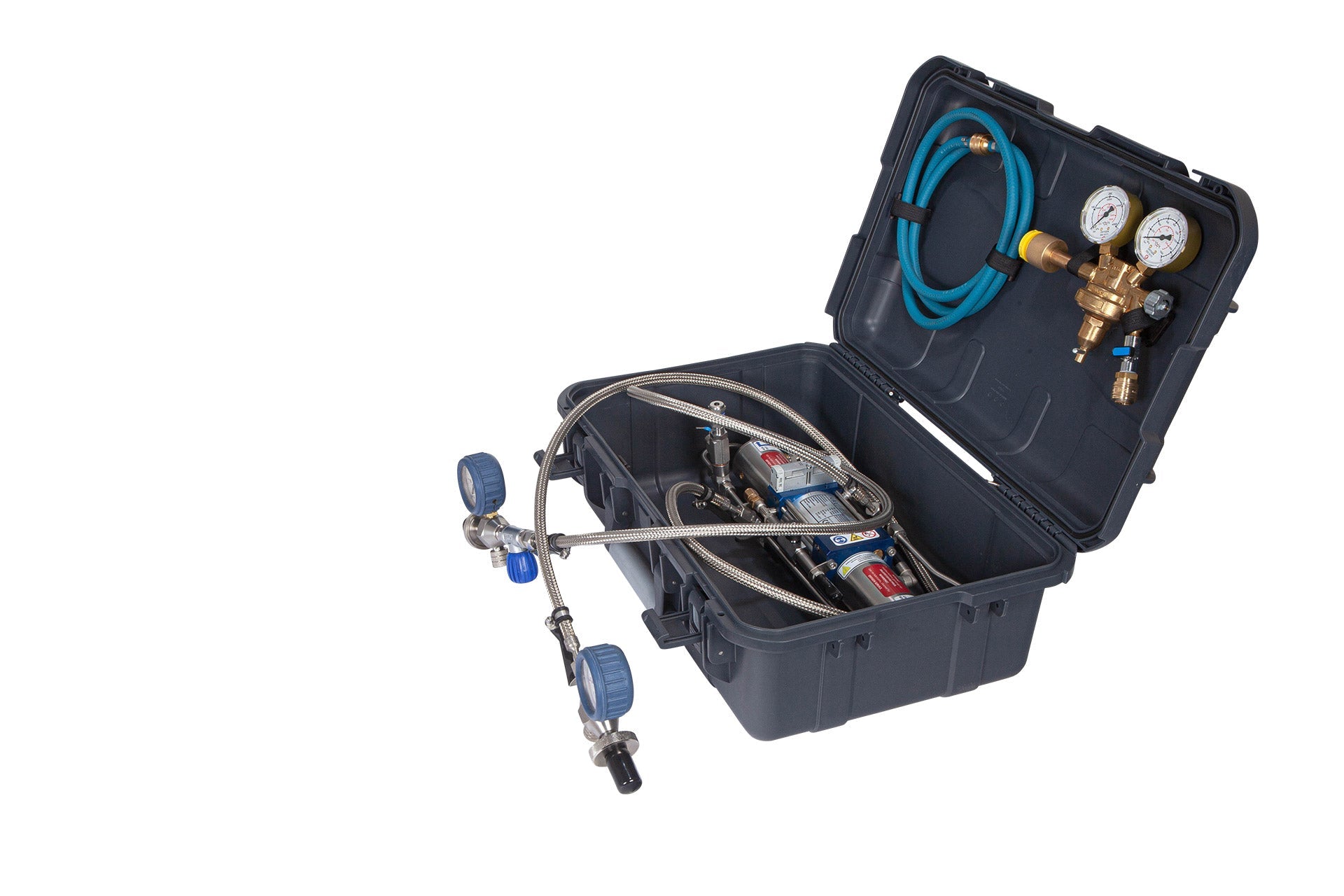

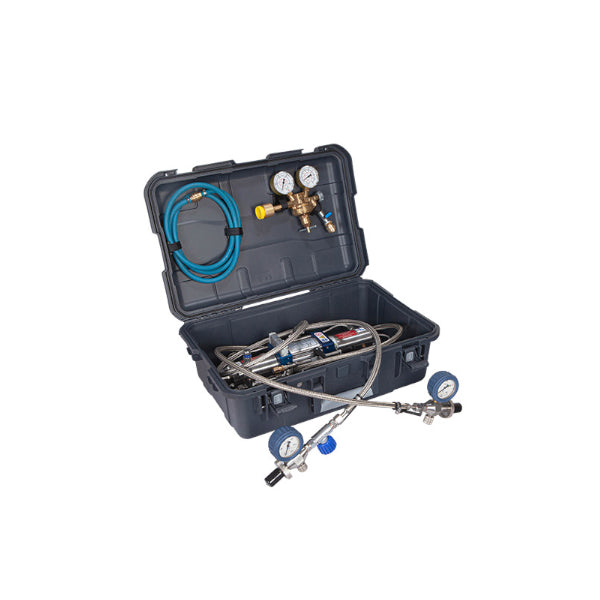

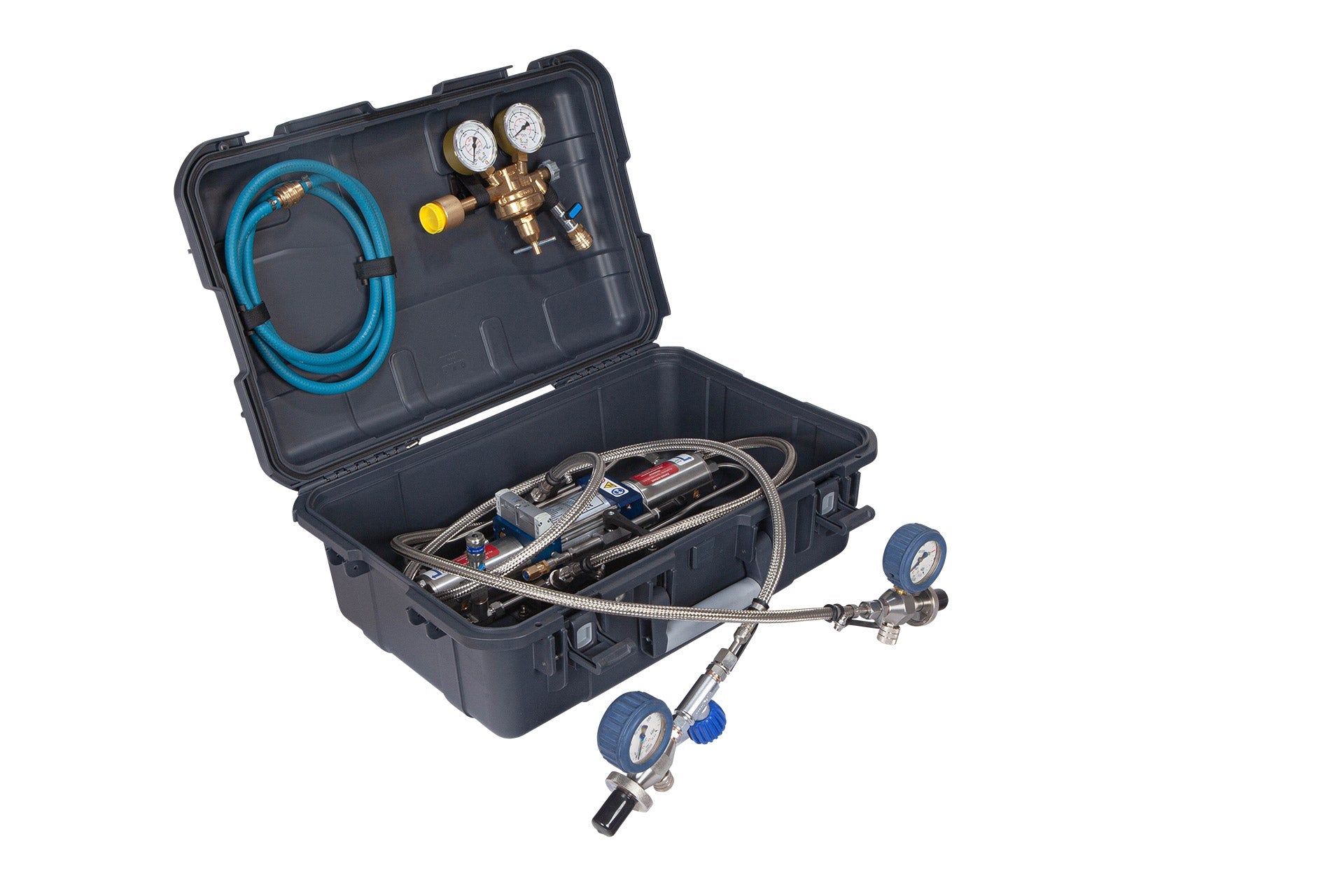

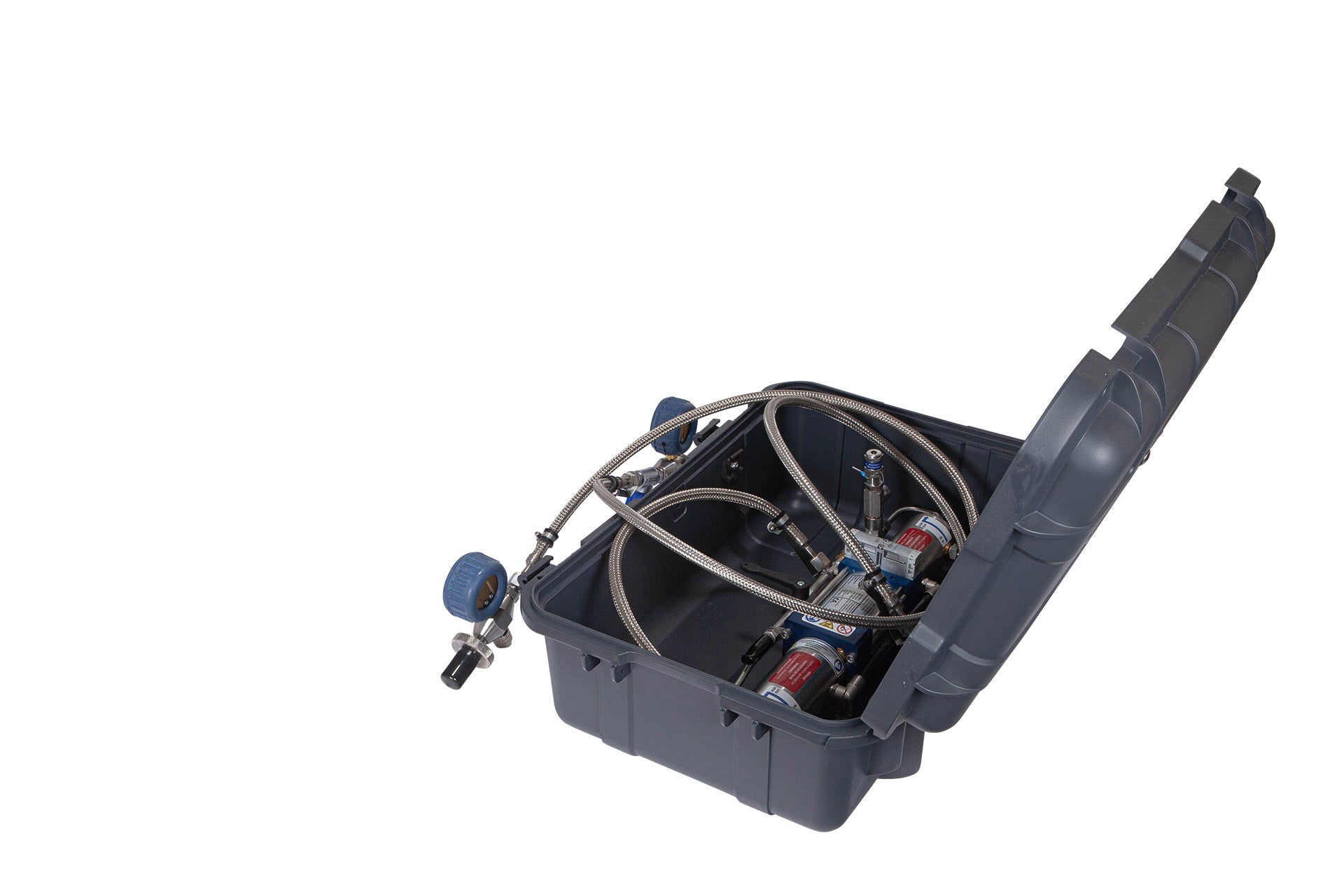

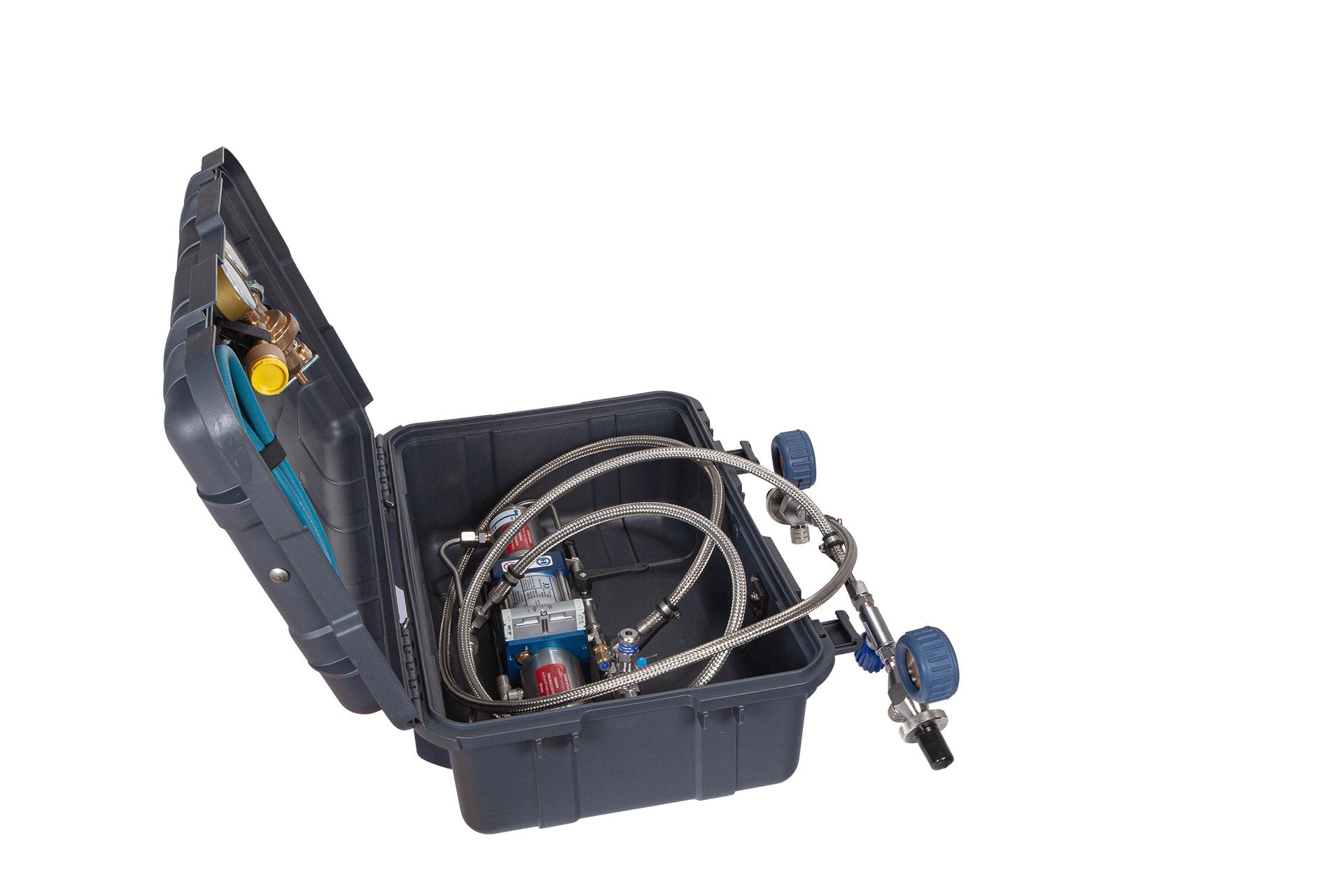

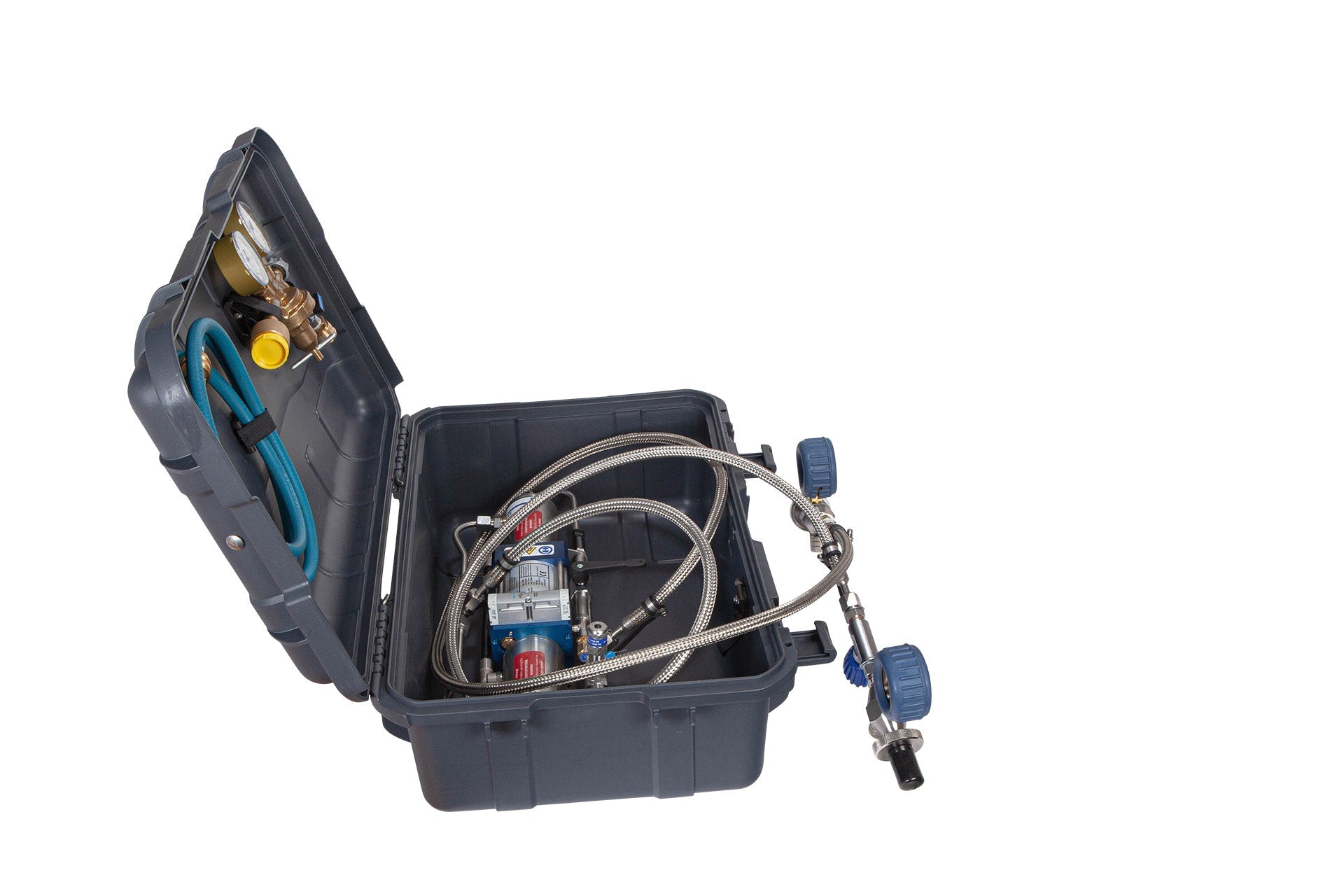

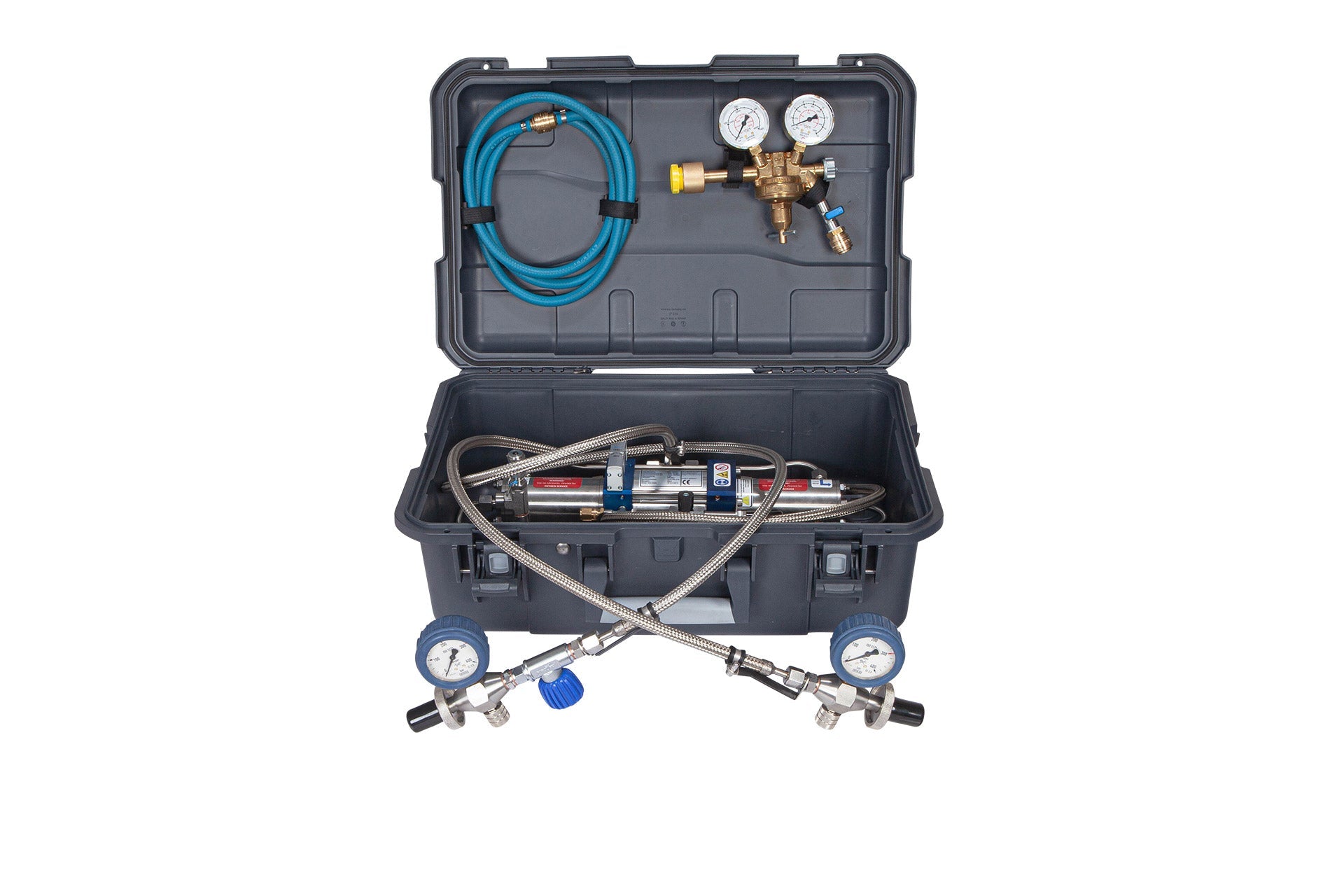

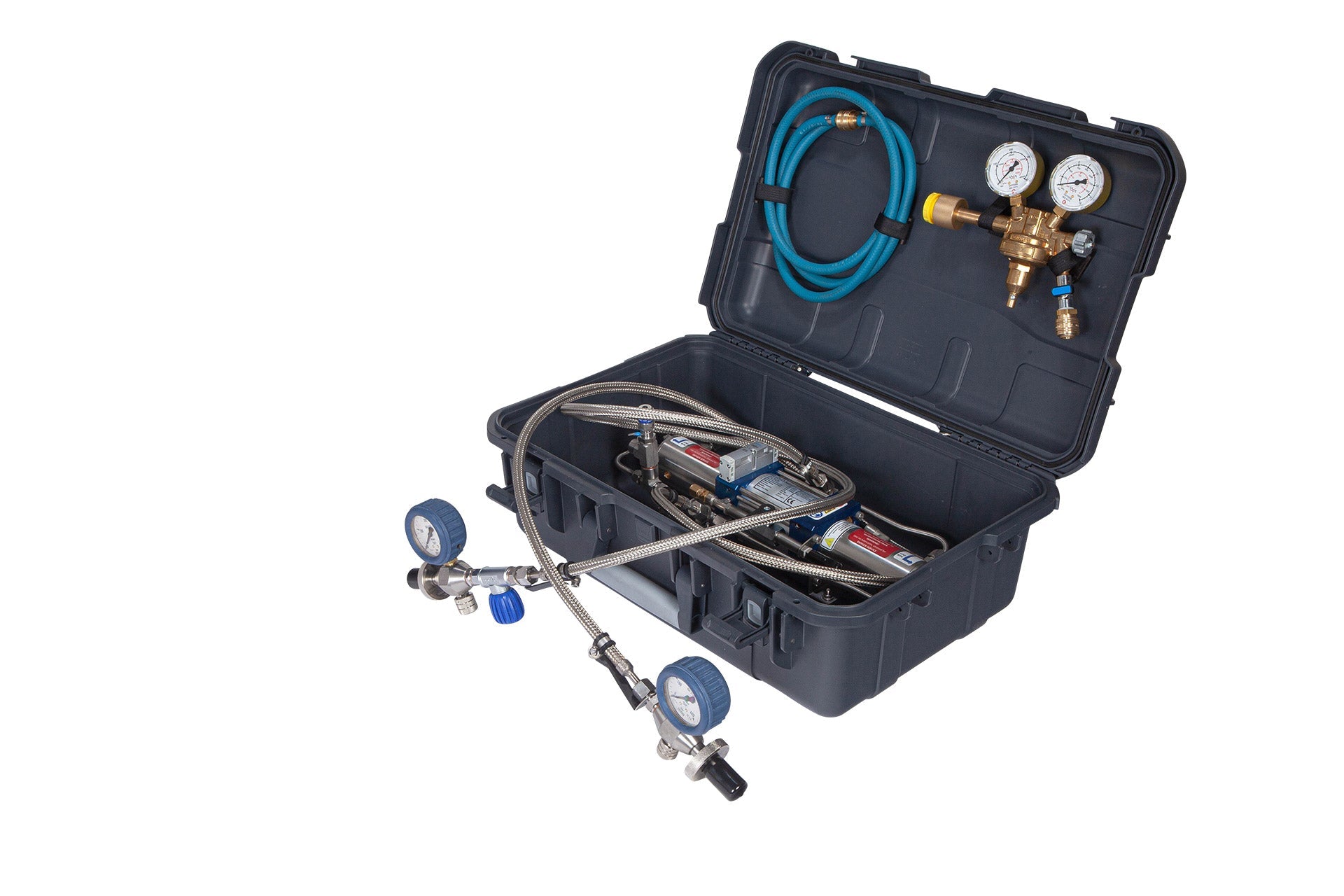

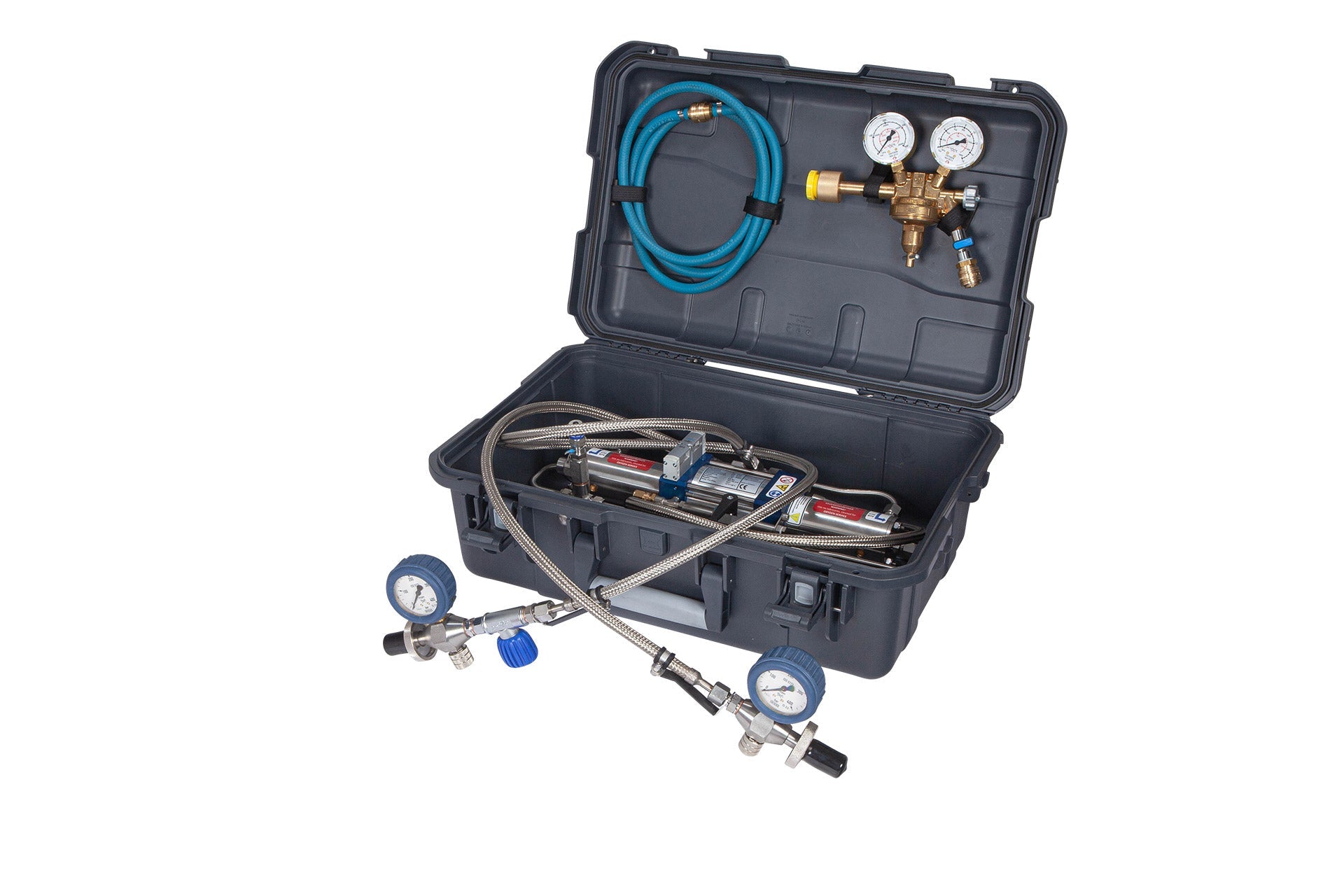

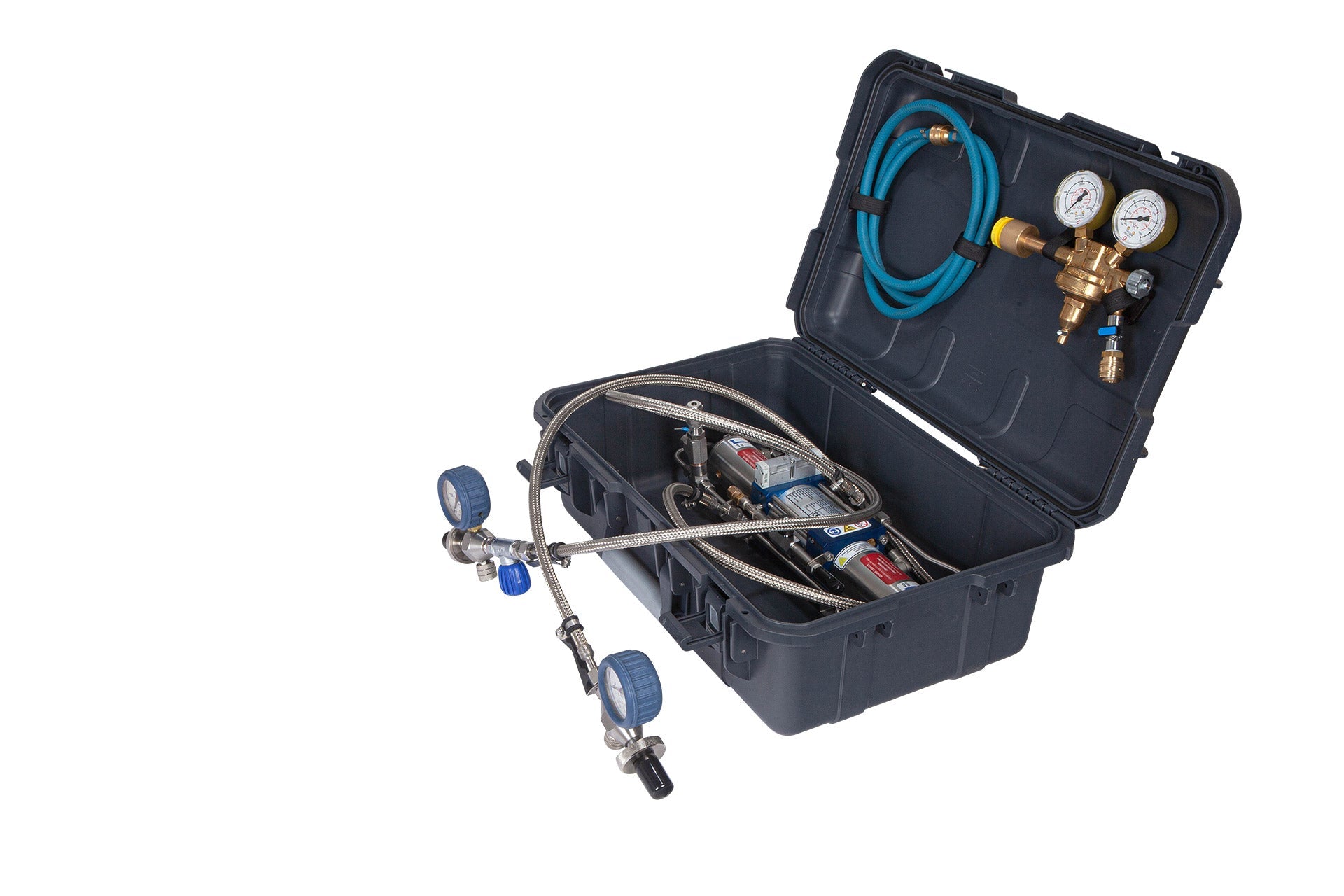

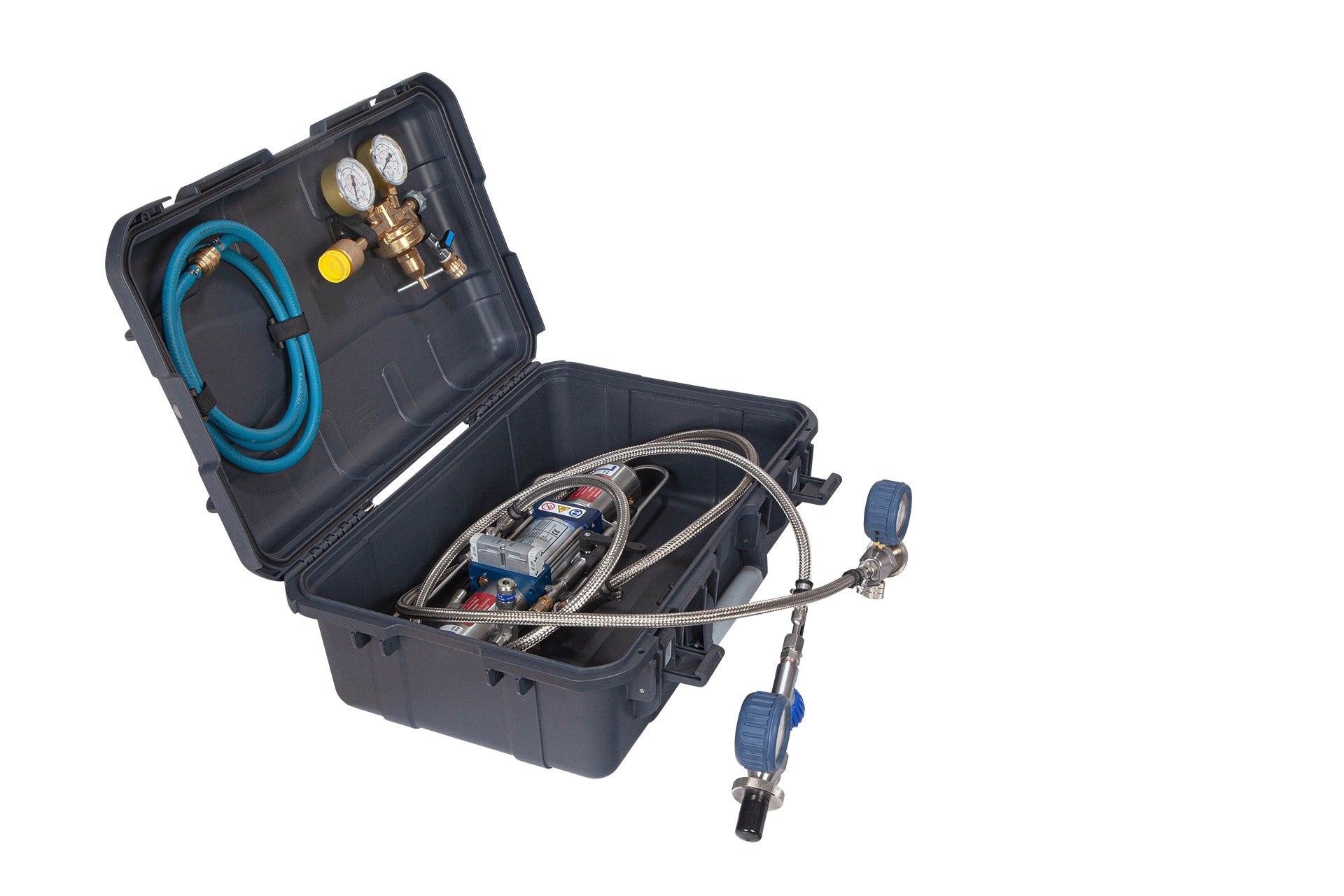

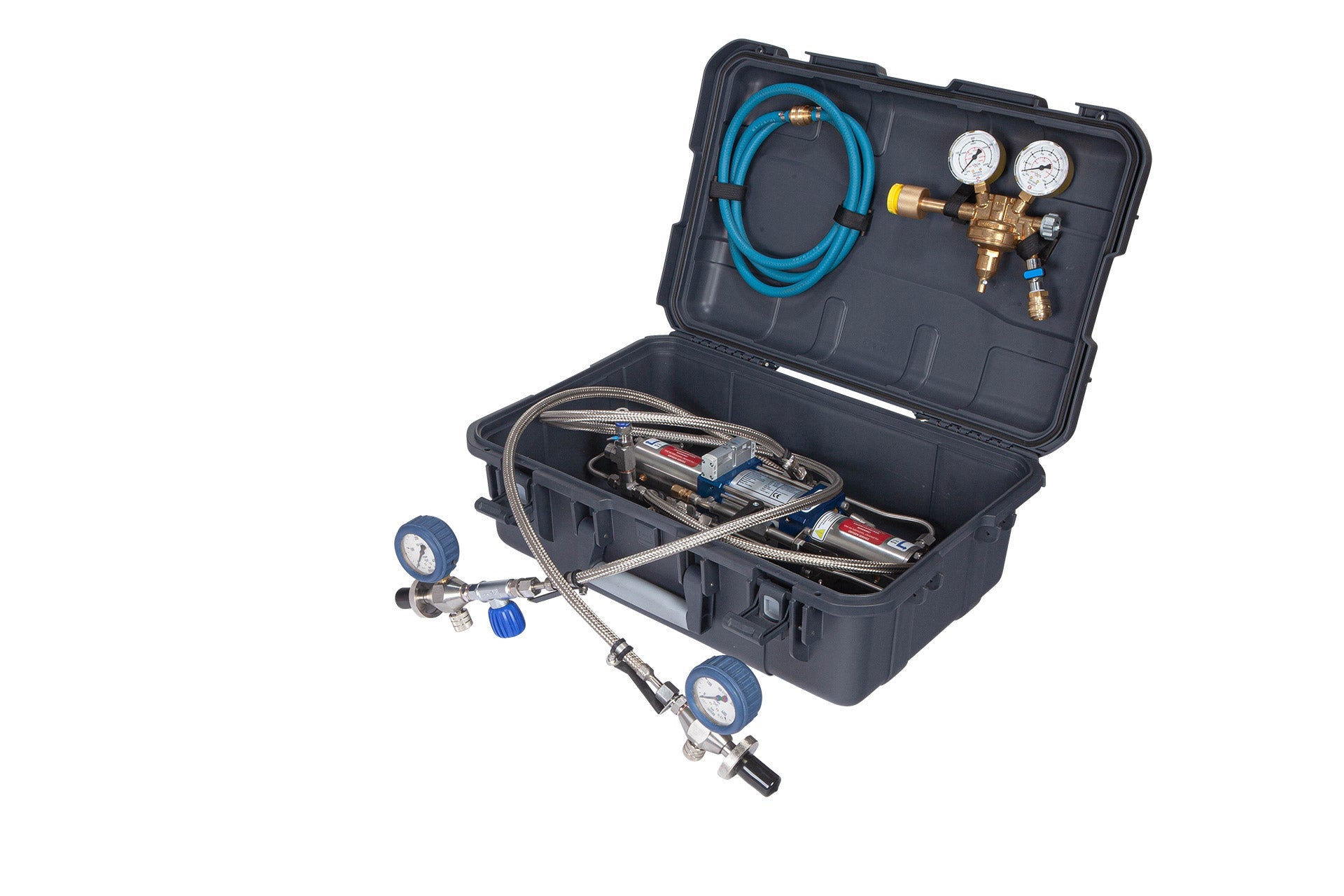

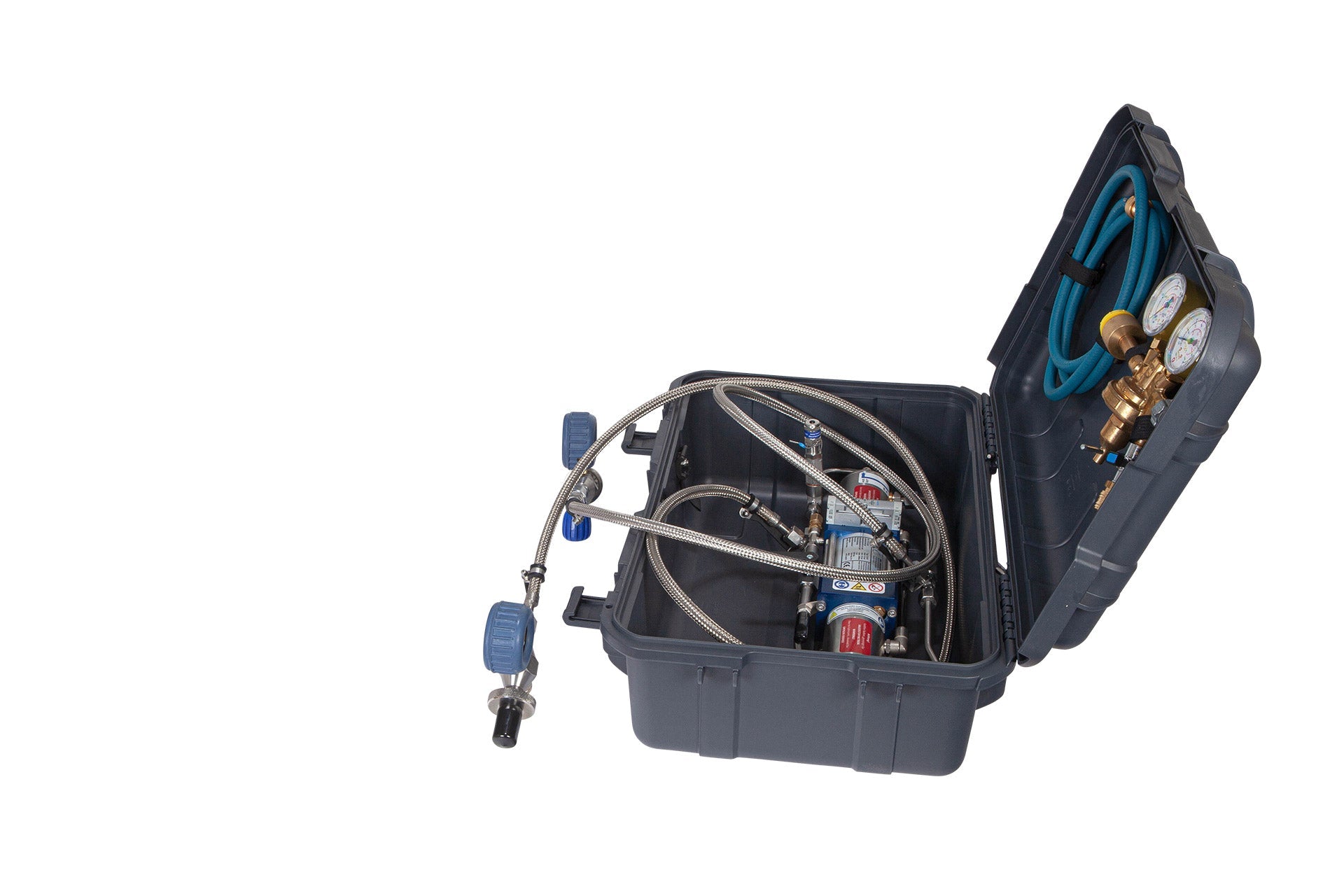

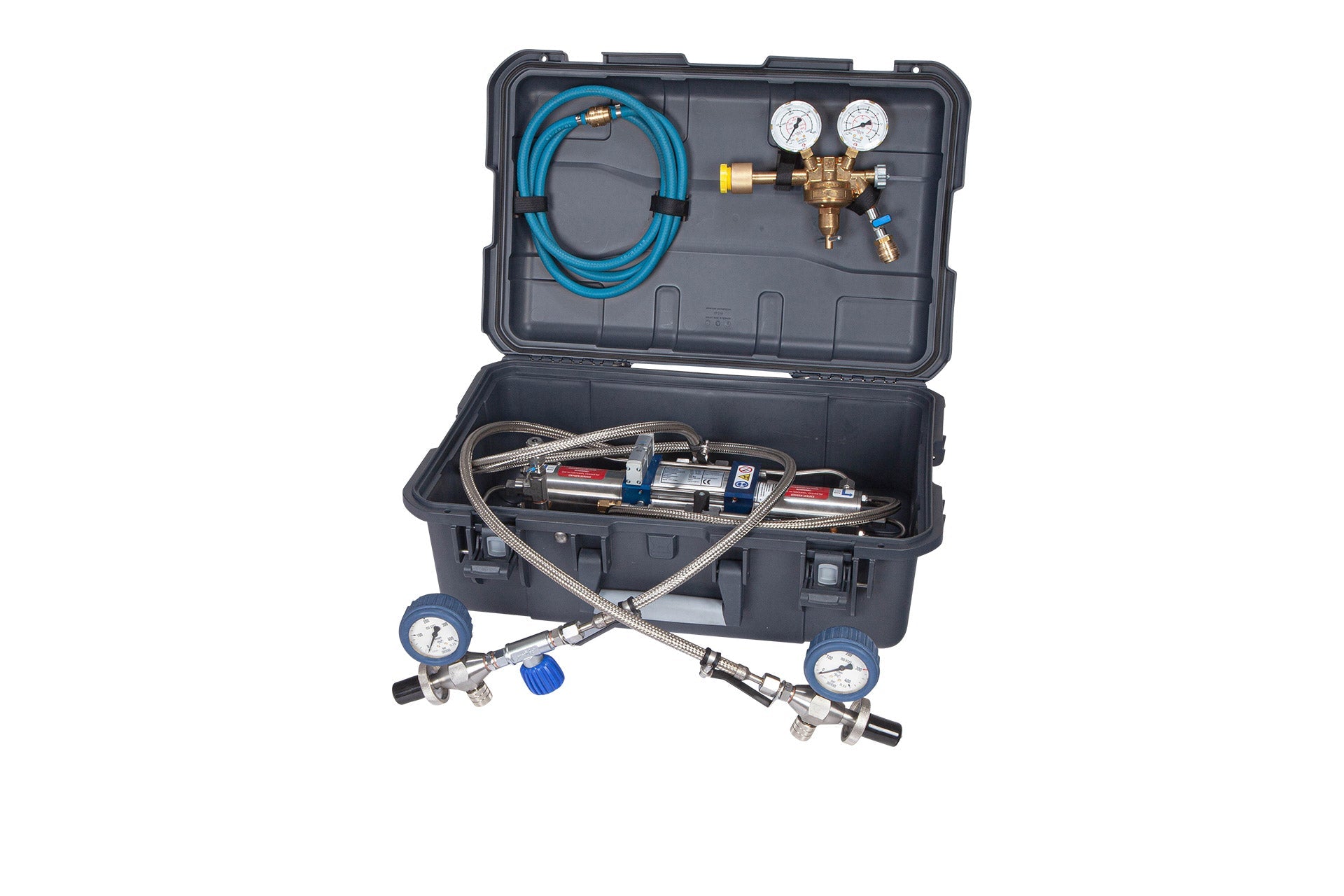

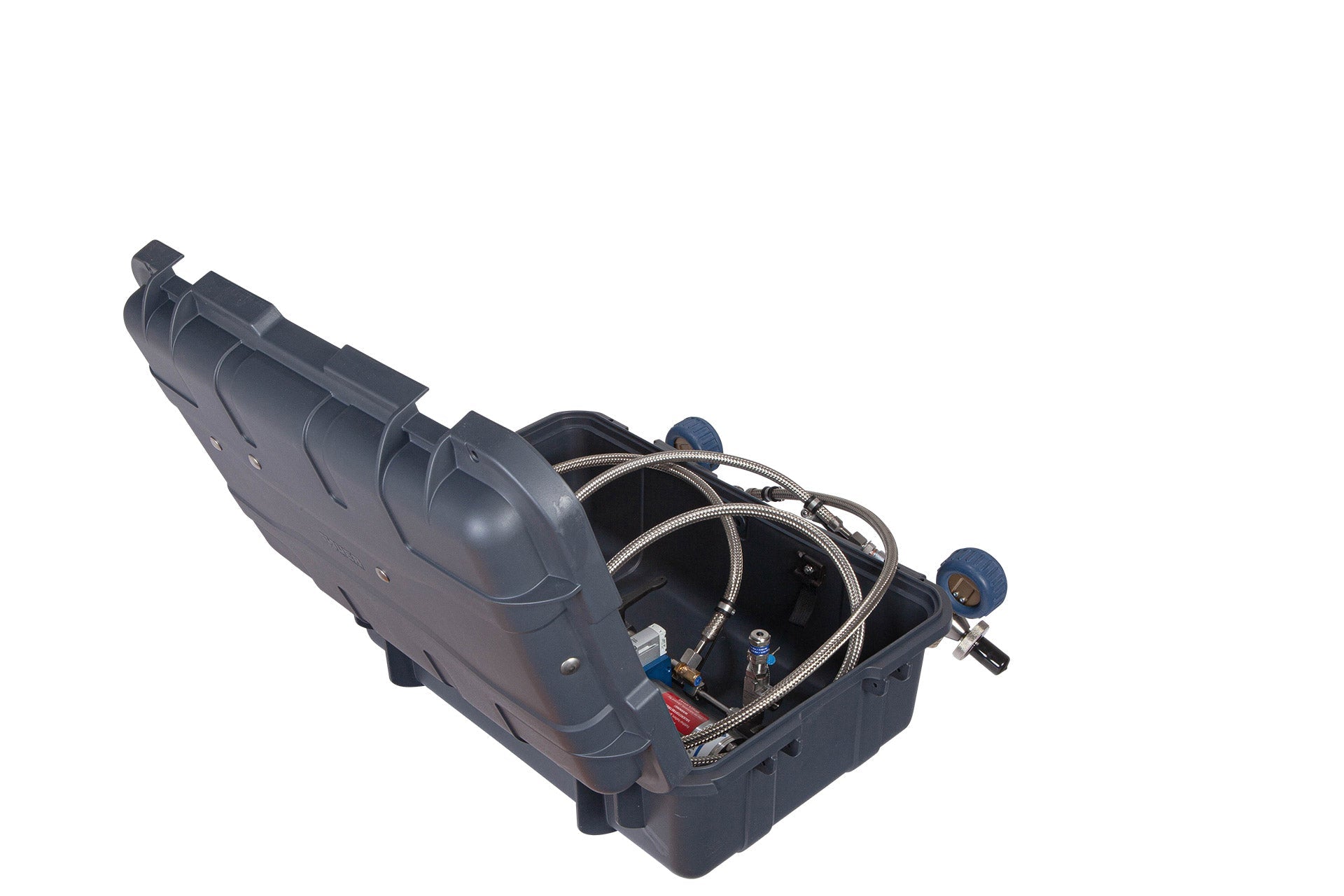

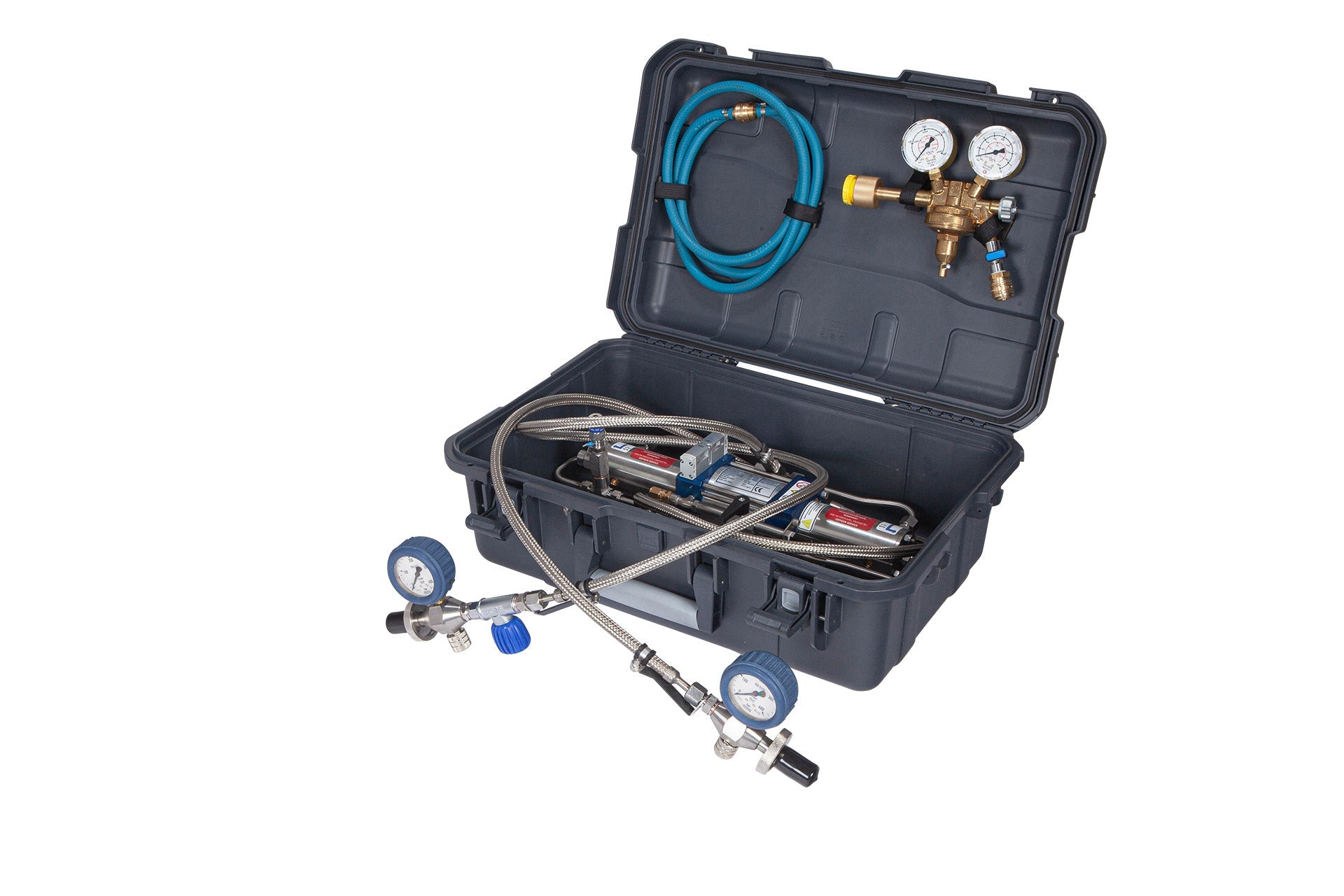

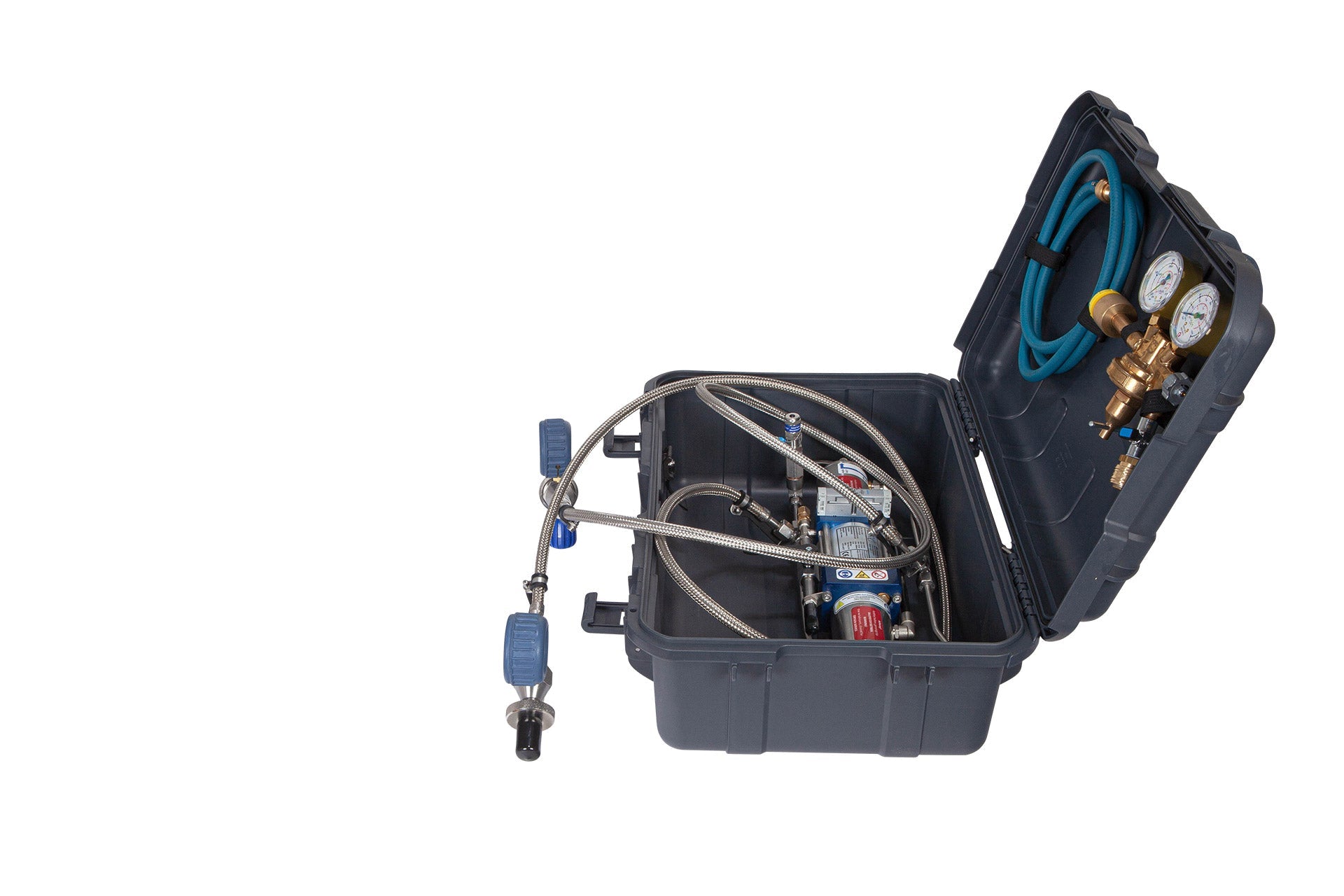

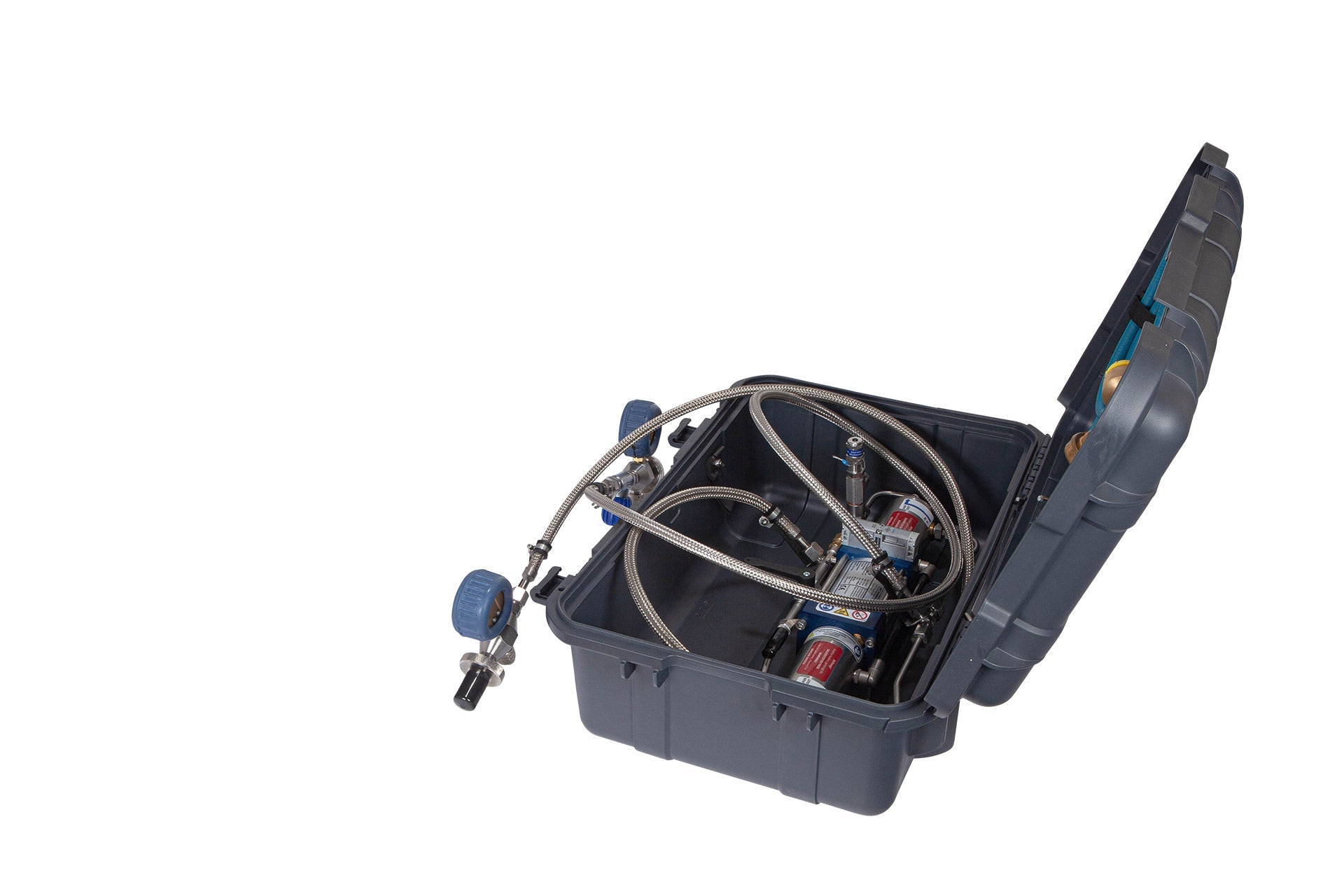

The 220/2 Booster Set with 320 bar final pressure is a ready-to-connect booster system delivered in a waterproof protective case. Designed for reliability and safety, this set includes high-quality hoses, valves, and manometers for precise oxygen, nitrox, and gas filling.

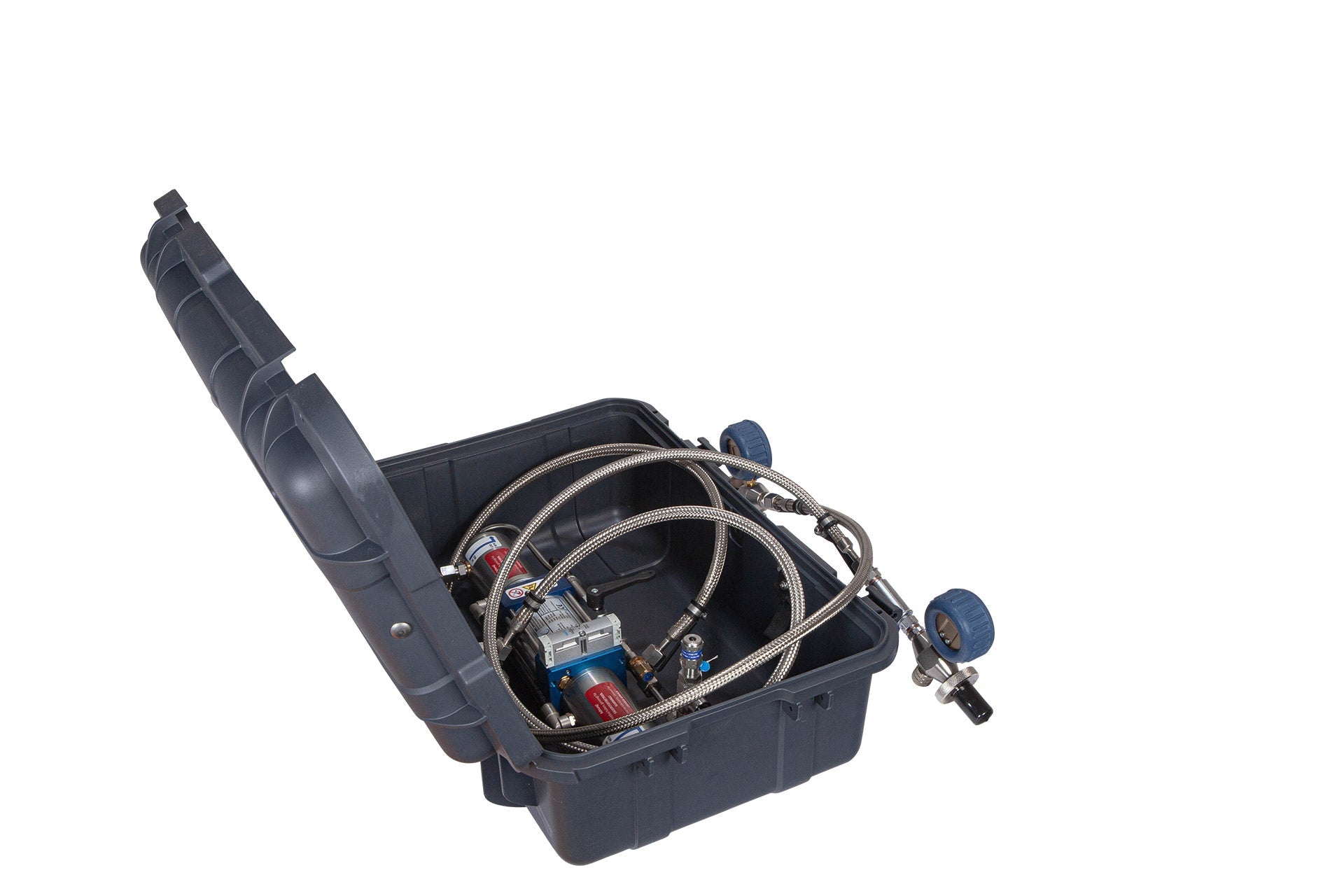

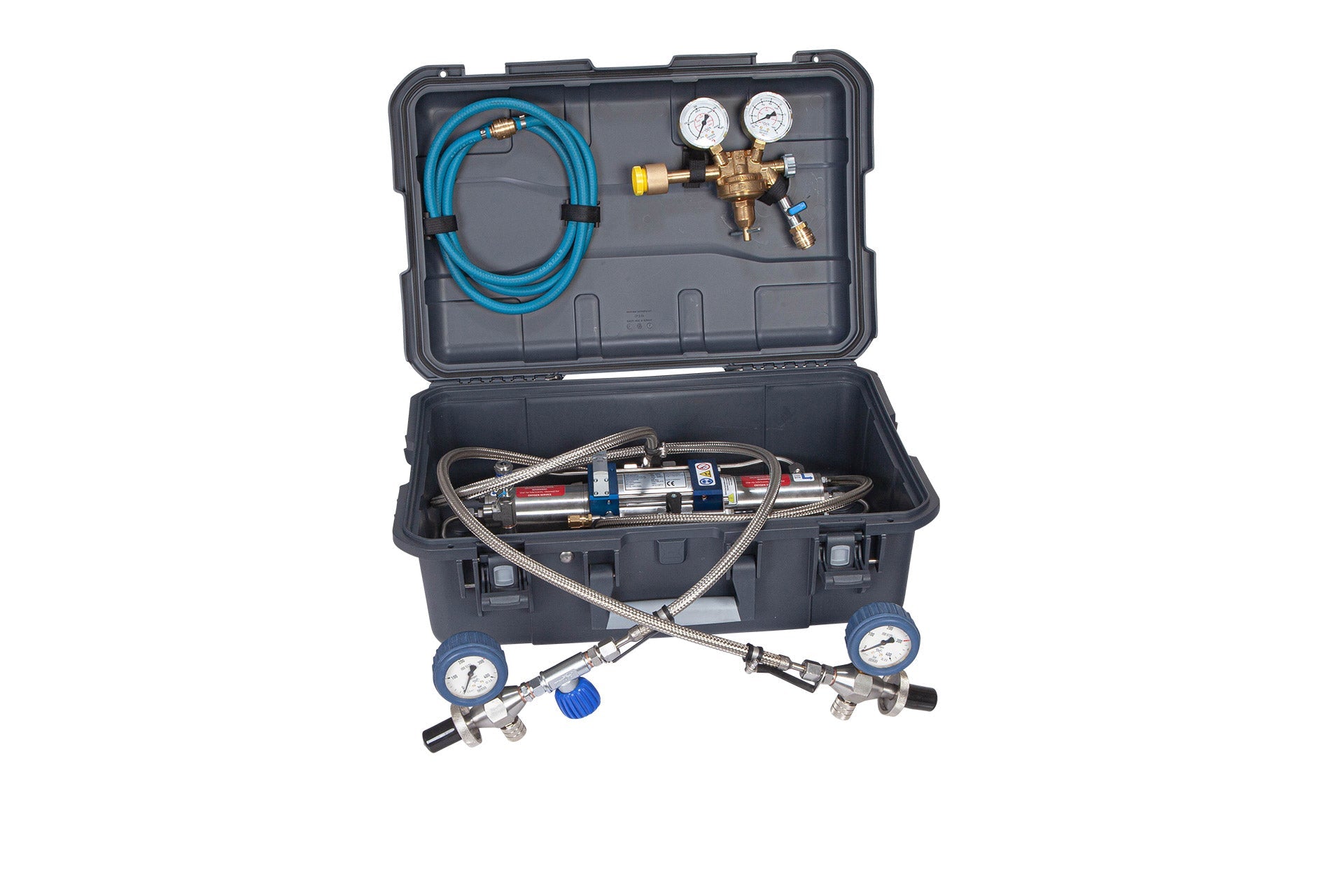

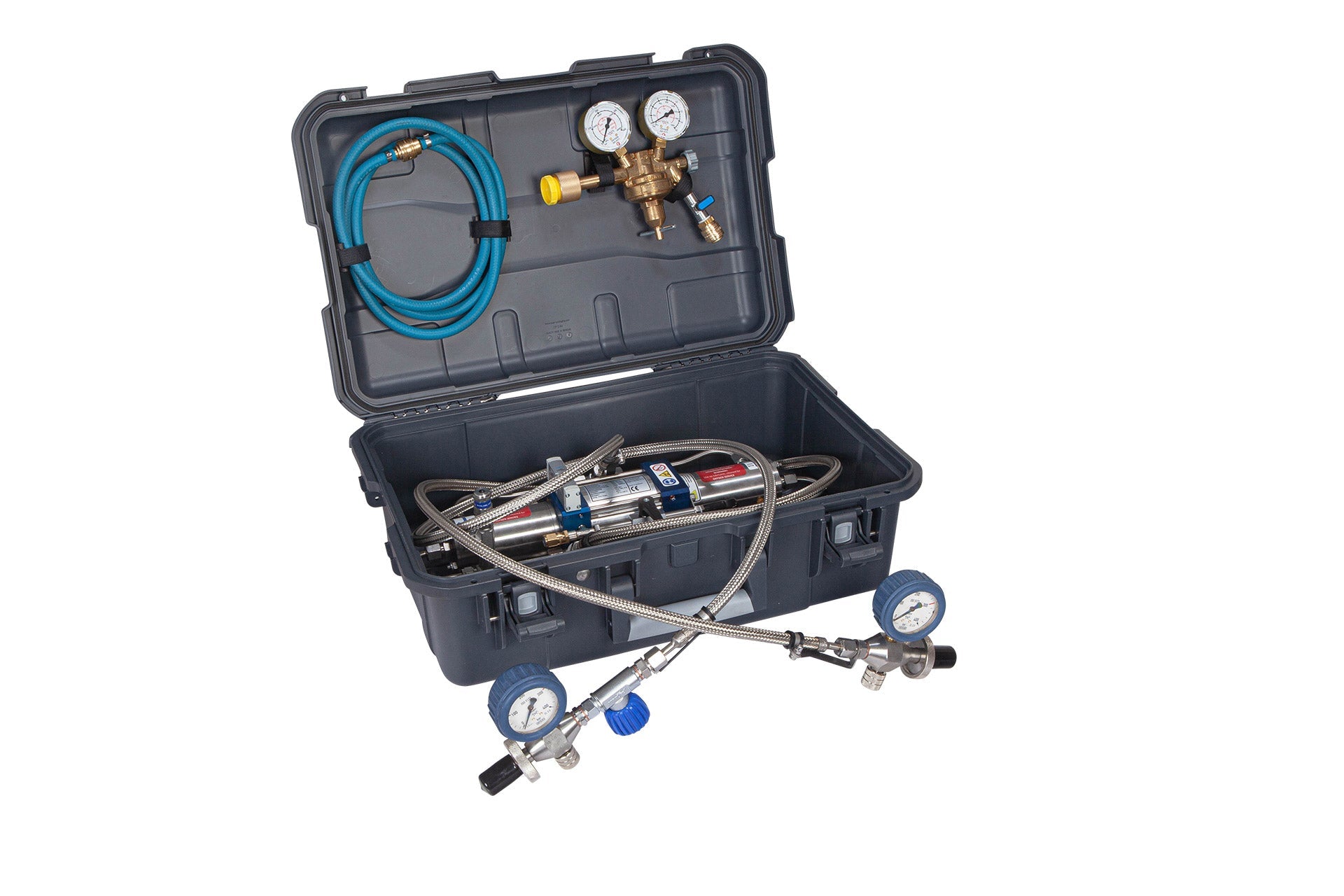

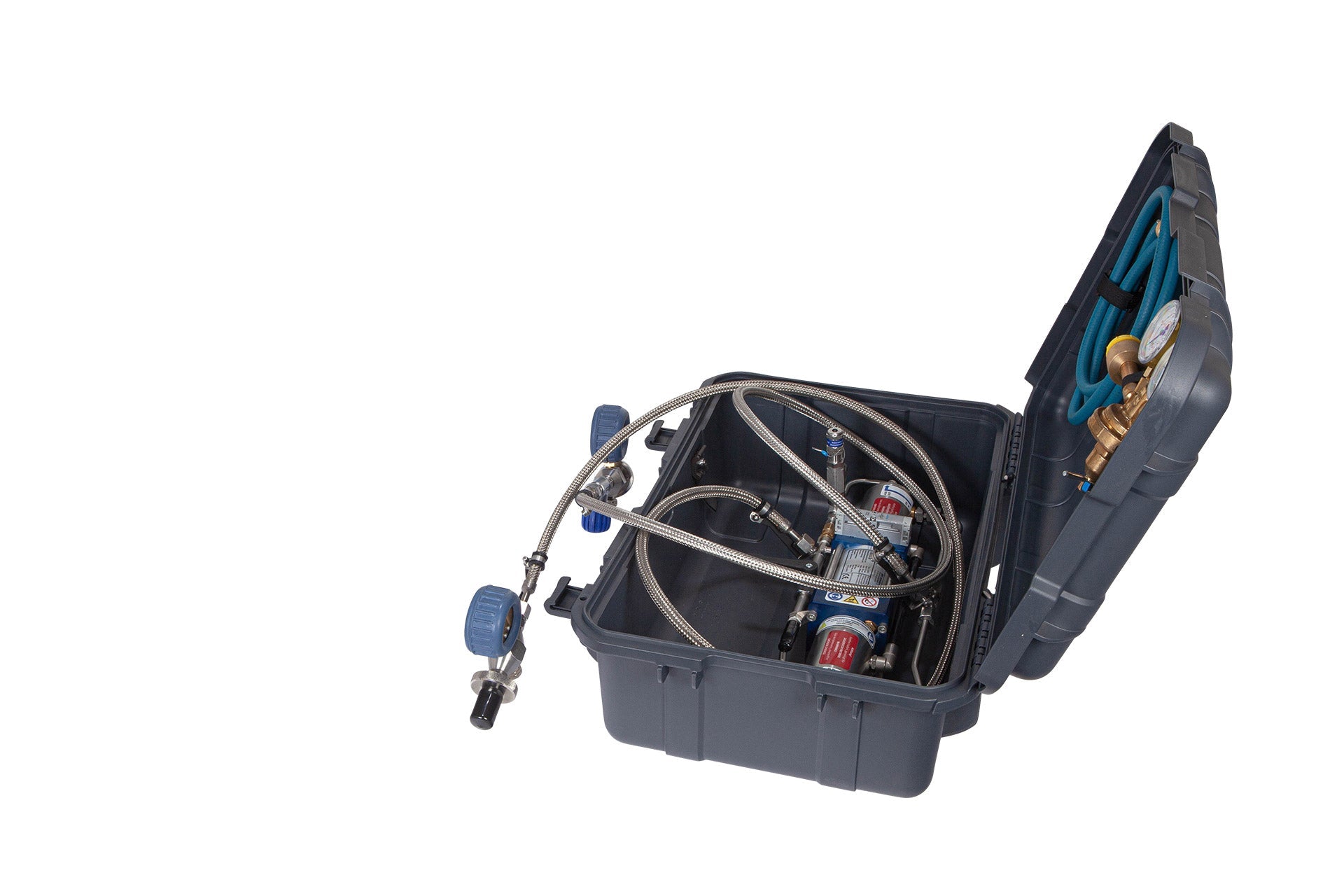

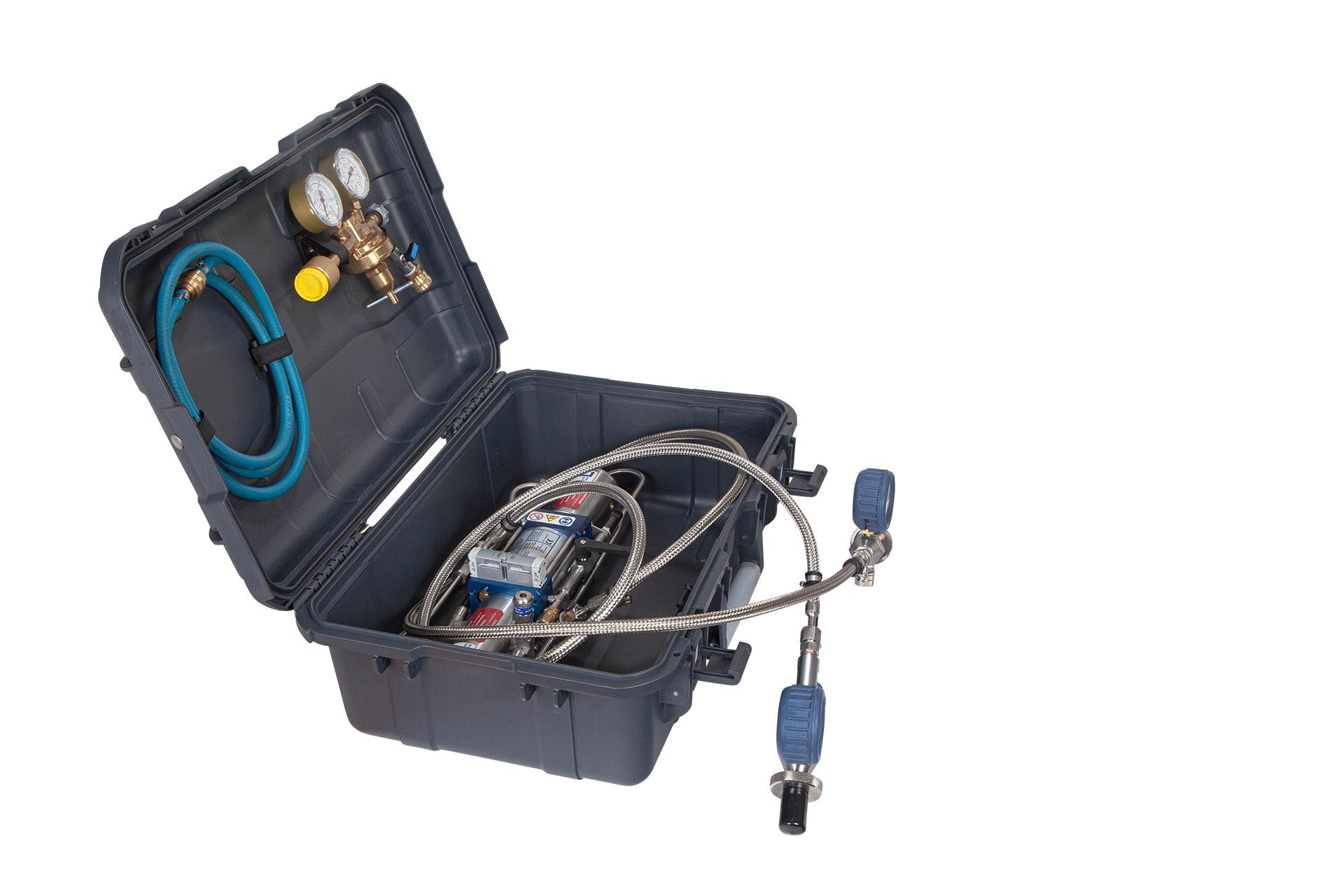

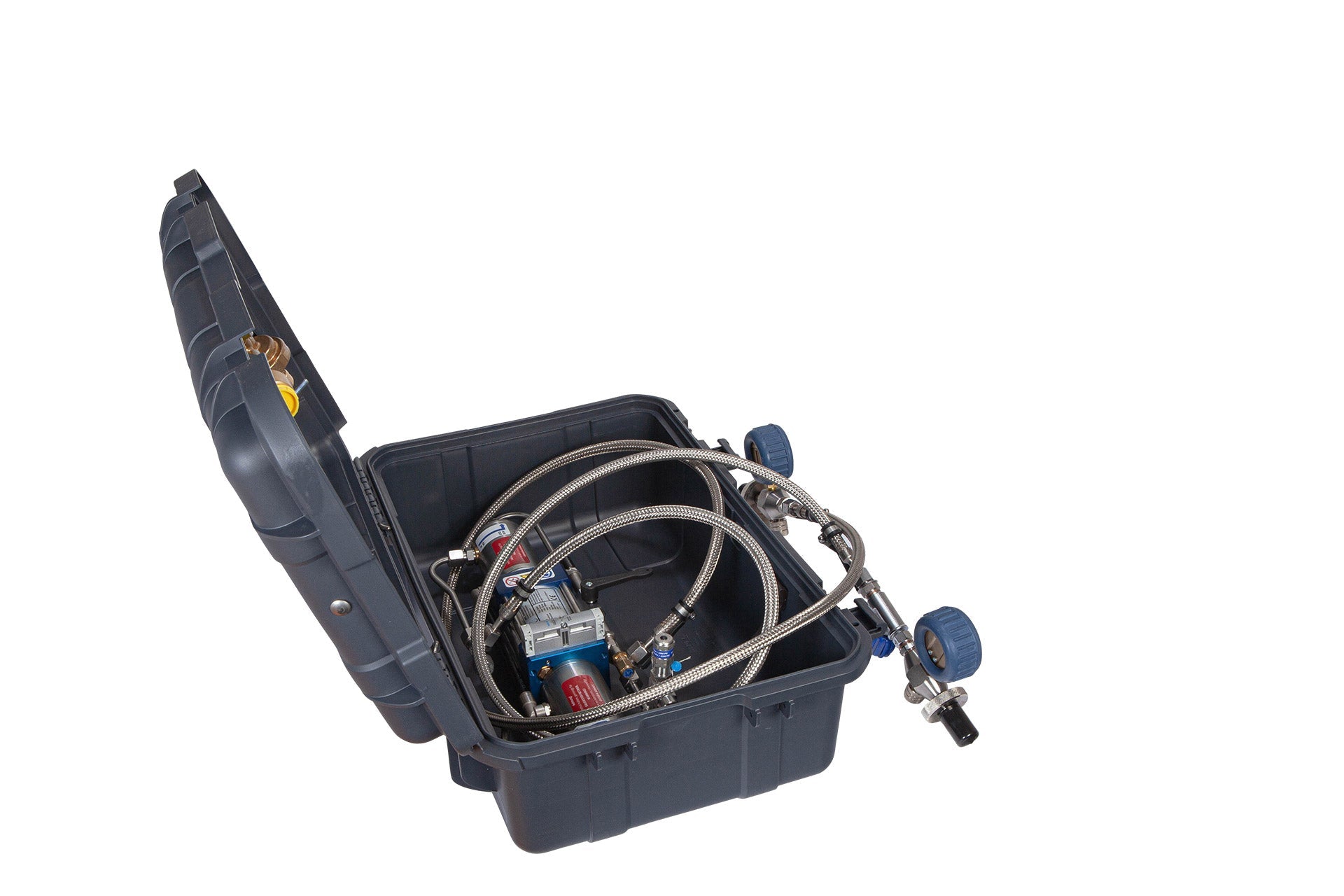

Set Components:

• Tec-Booster 220/2
• Removal hose (1.65 m, stainless steel corrugated hose):
  • Standard oxygen analog Wika manometer class 2.5 with rubber protection
  • Vent valve
  • Standard hose rupture protection
• Filling hose (1.65 m, stainless steel corrugated hose):
  • Standard industrial needle valve
  • Standard oxygen analog Wika manometer class 2.5 with rubber protection
  • Standard hose rupture protection
• Pressure reducer for control air G5/8″ 200 bar

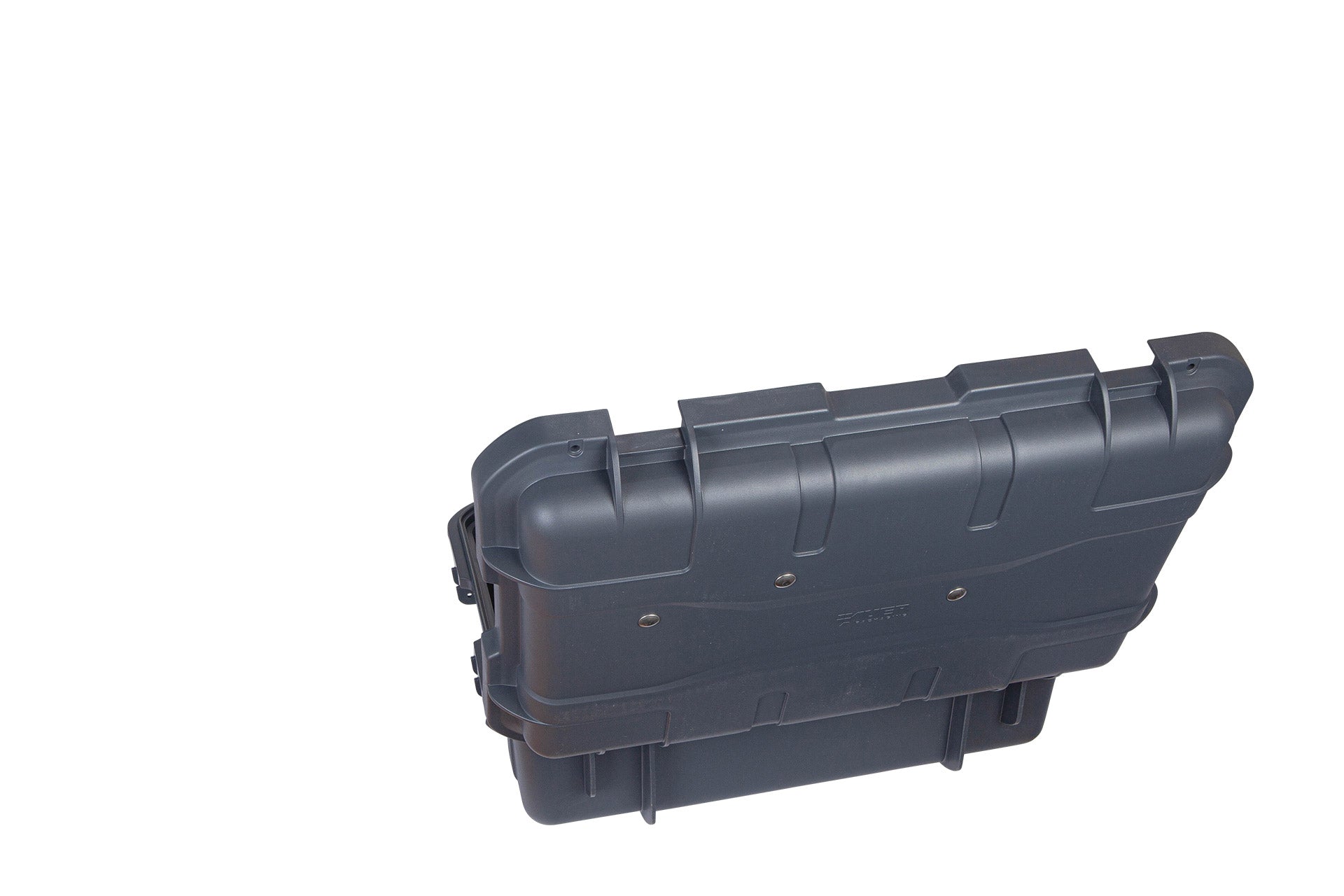

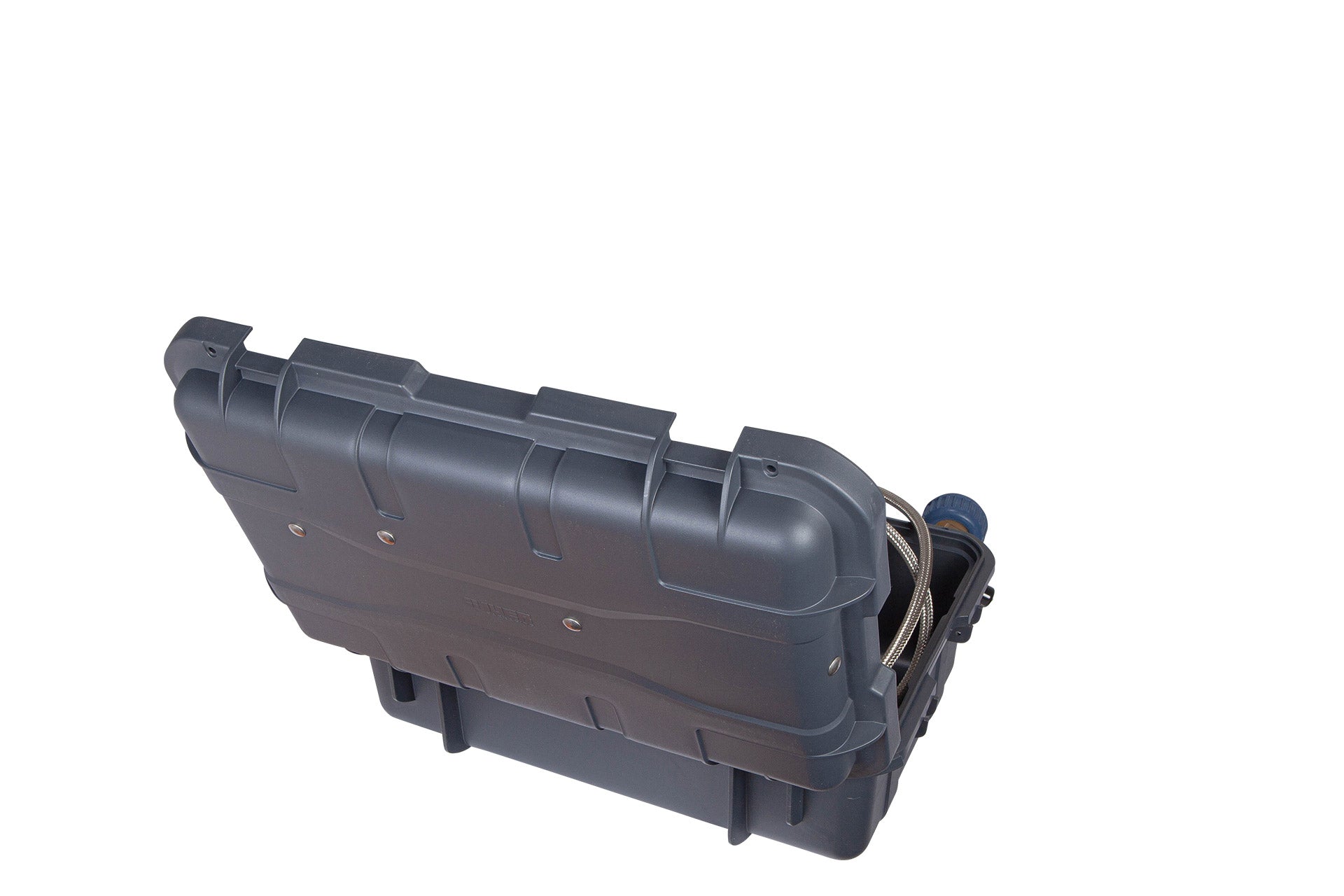

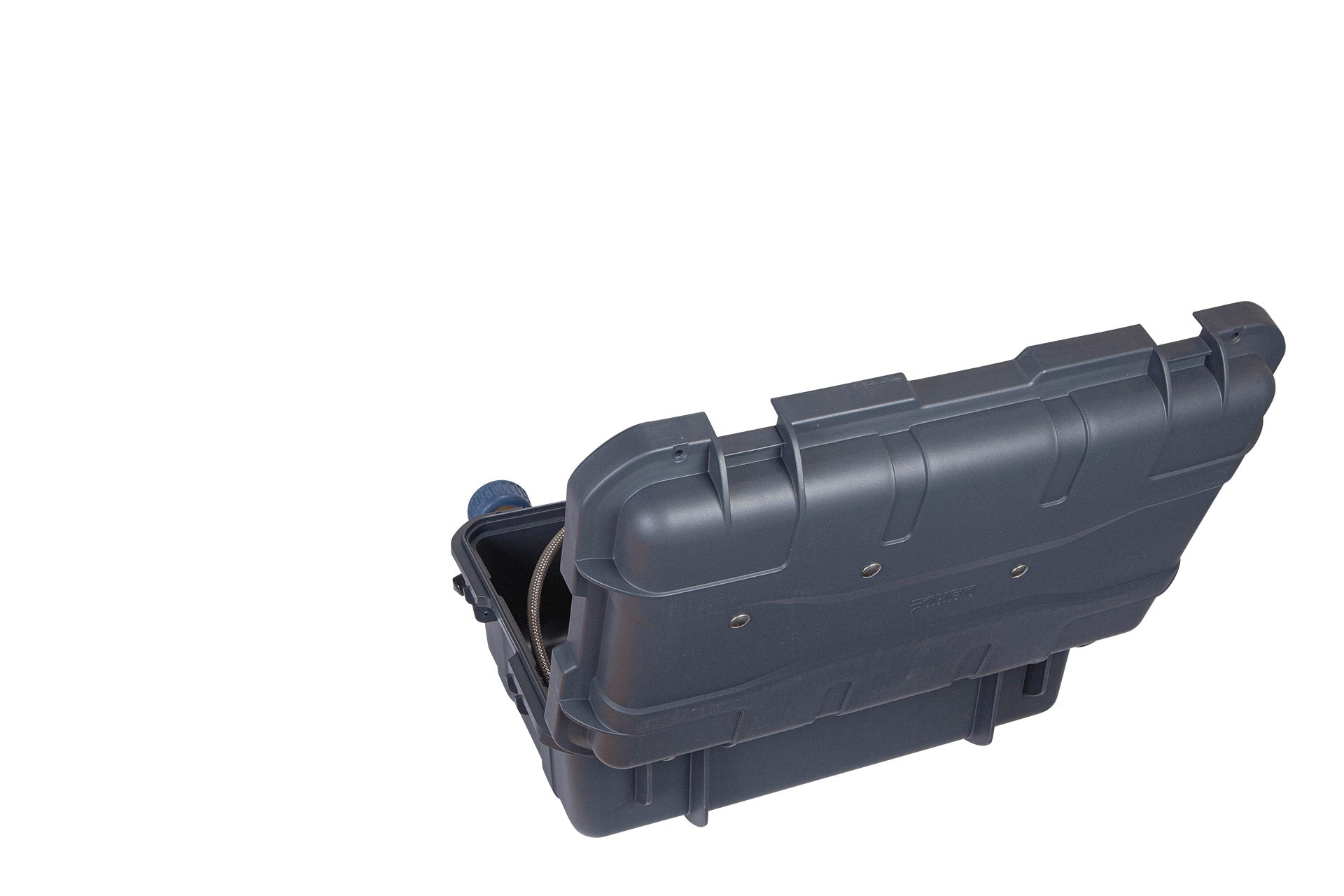

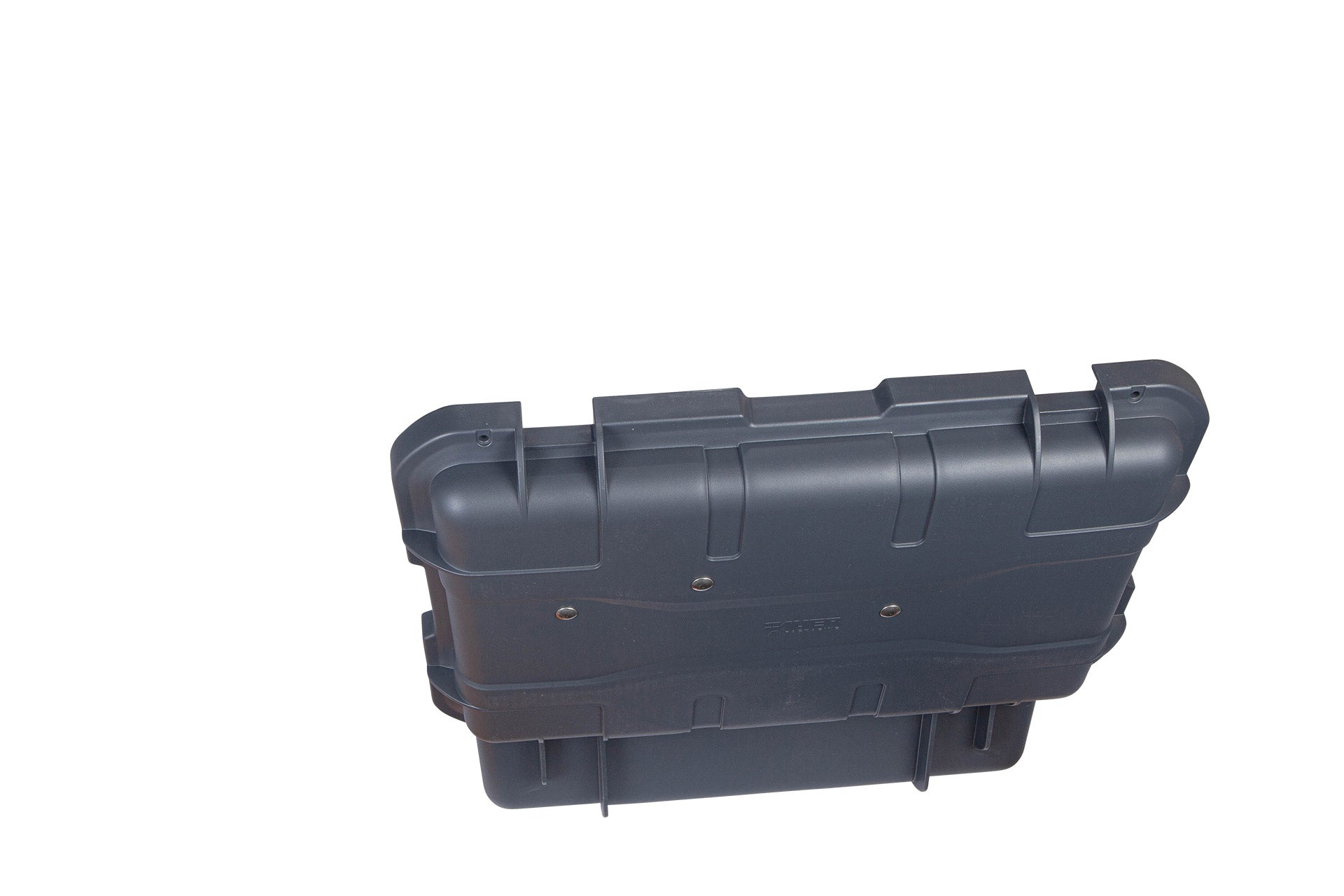

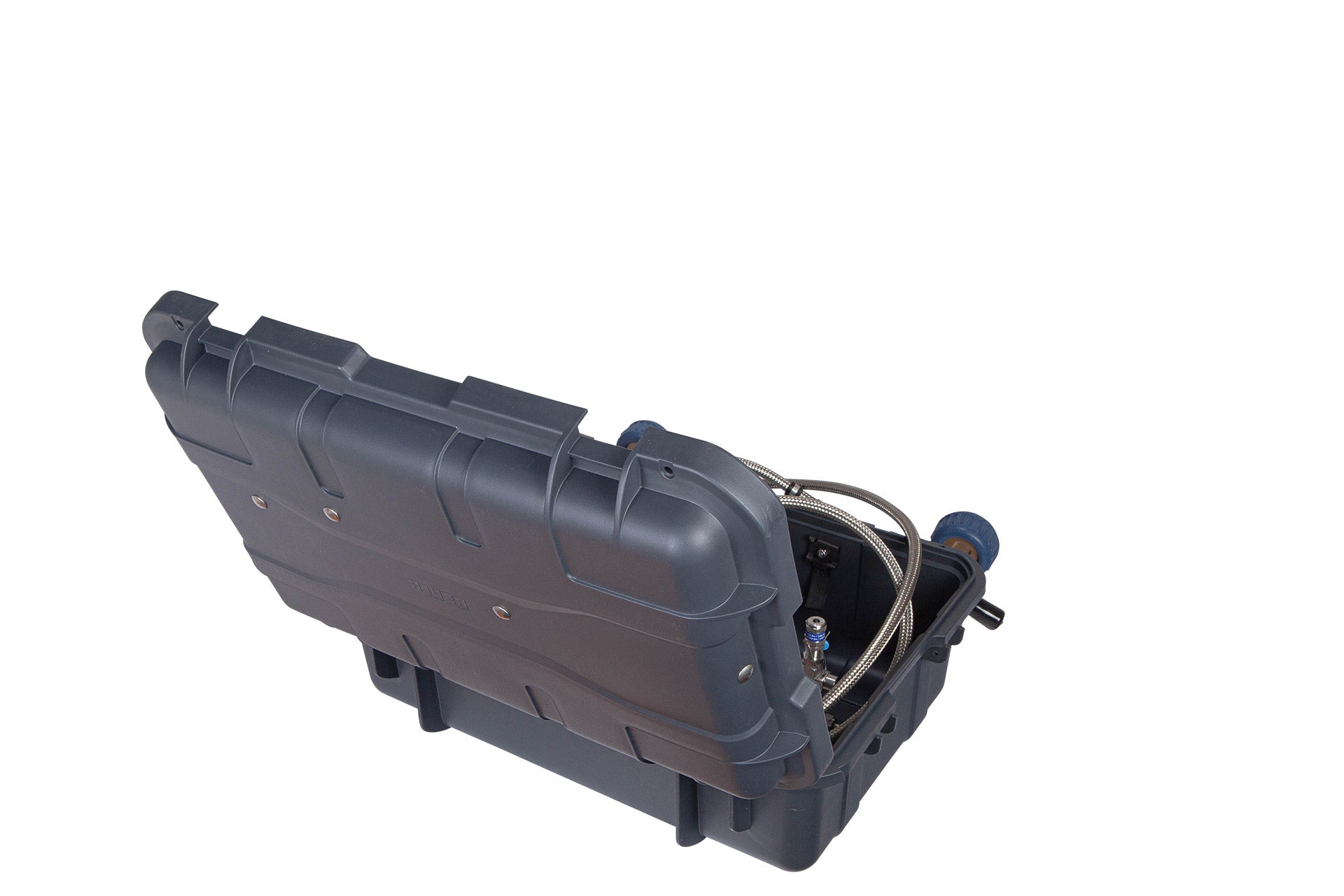

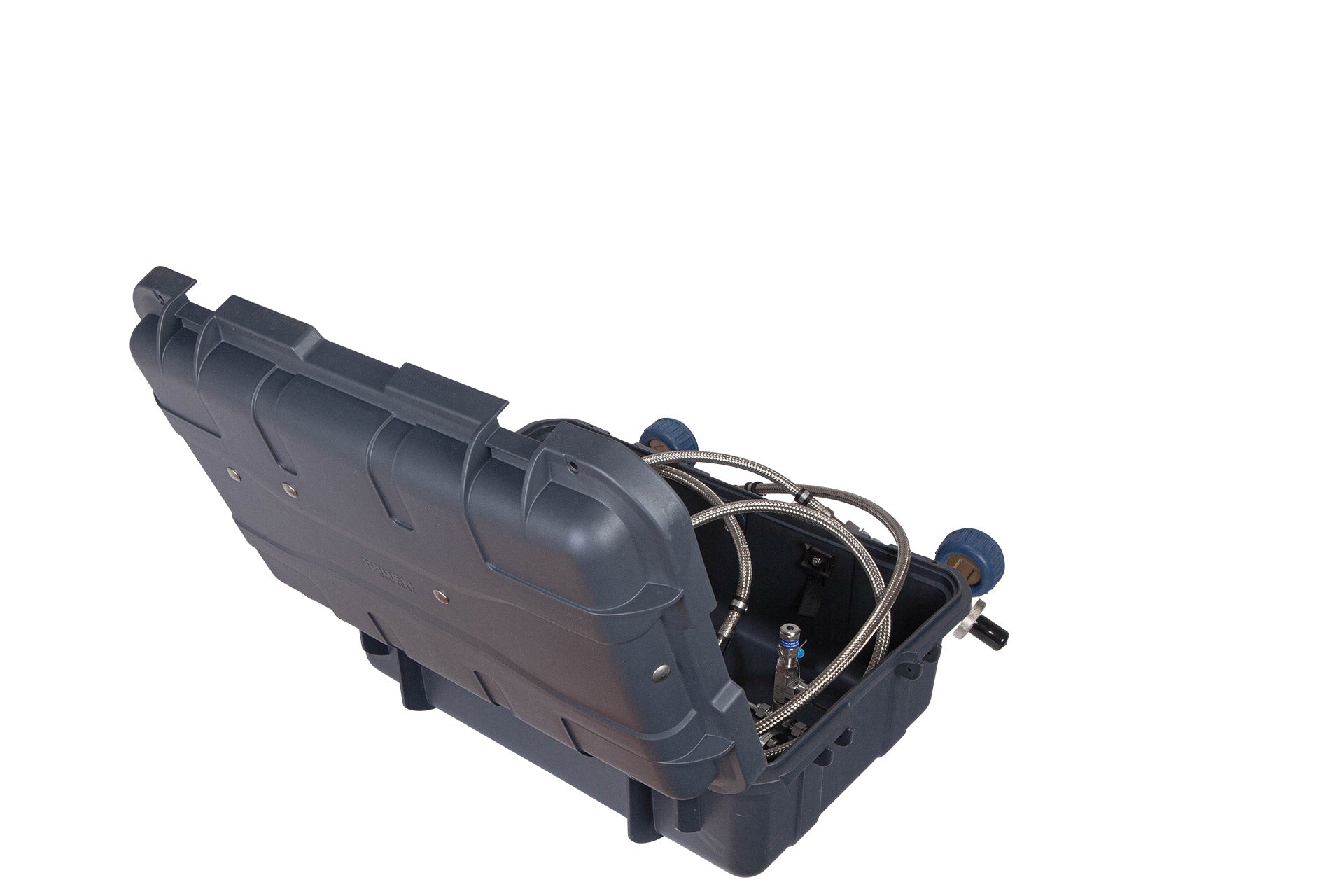

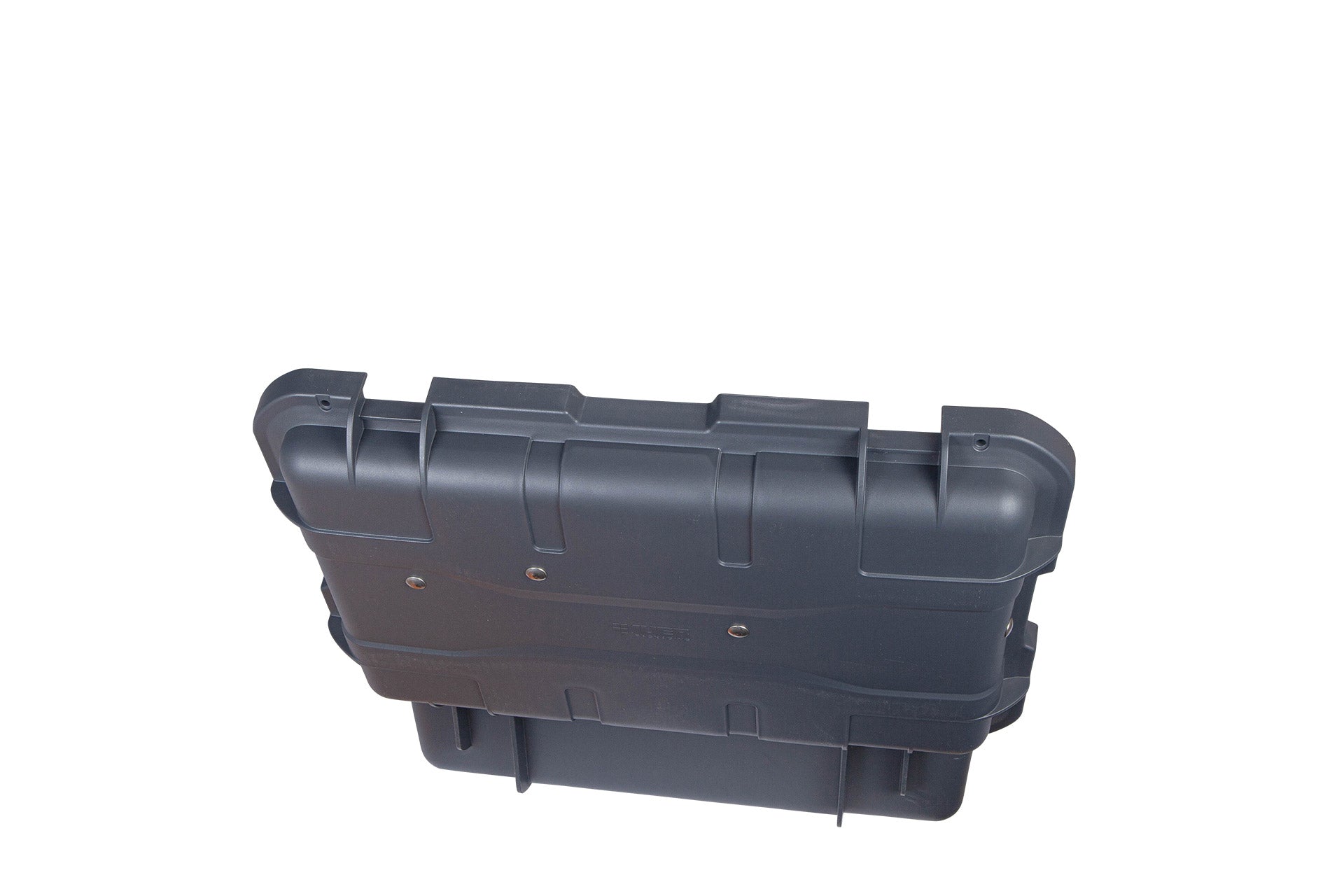

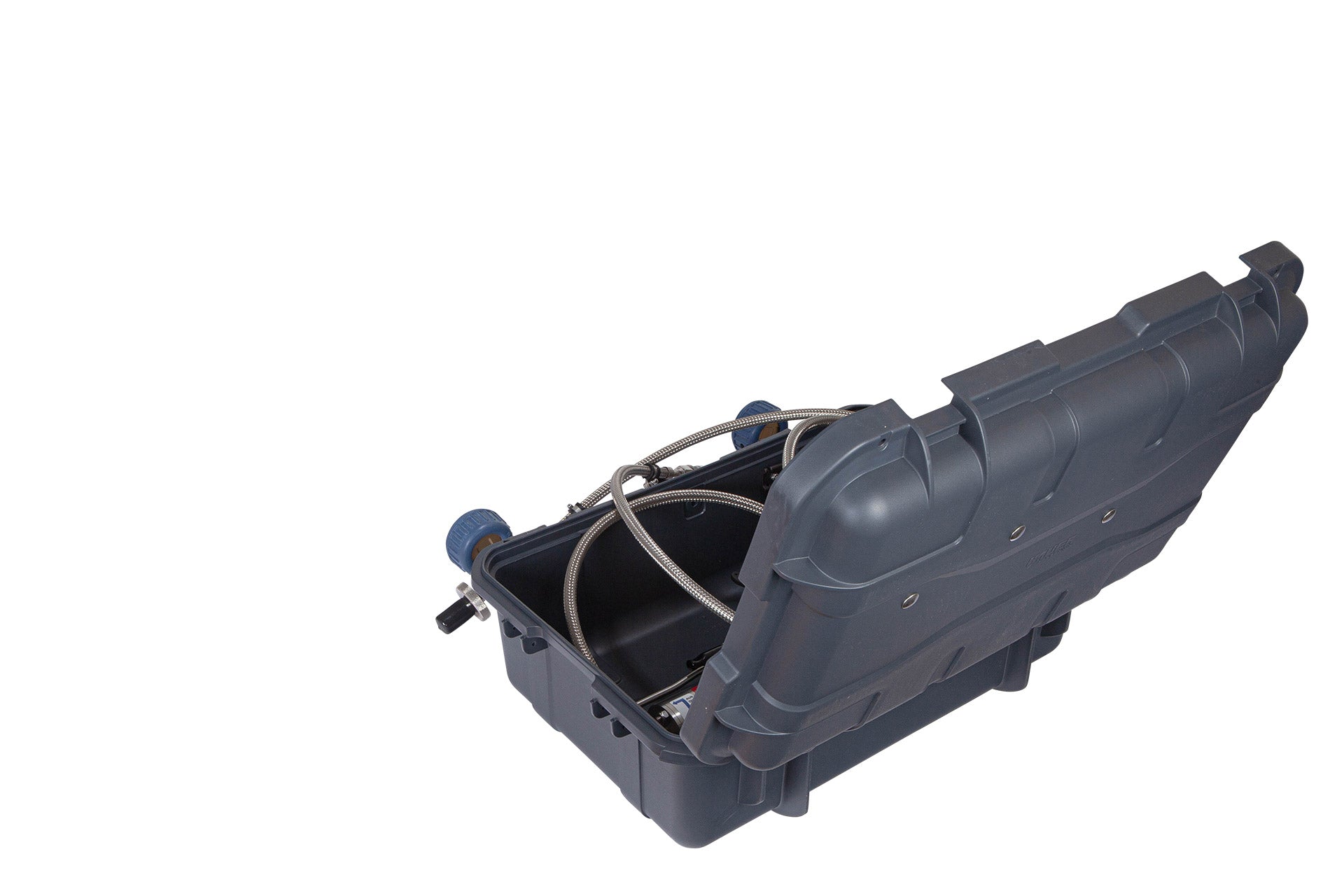

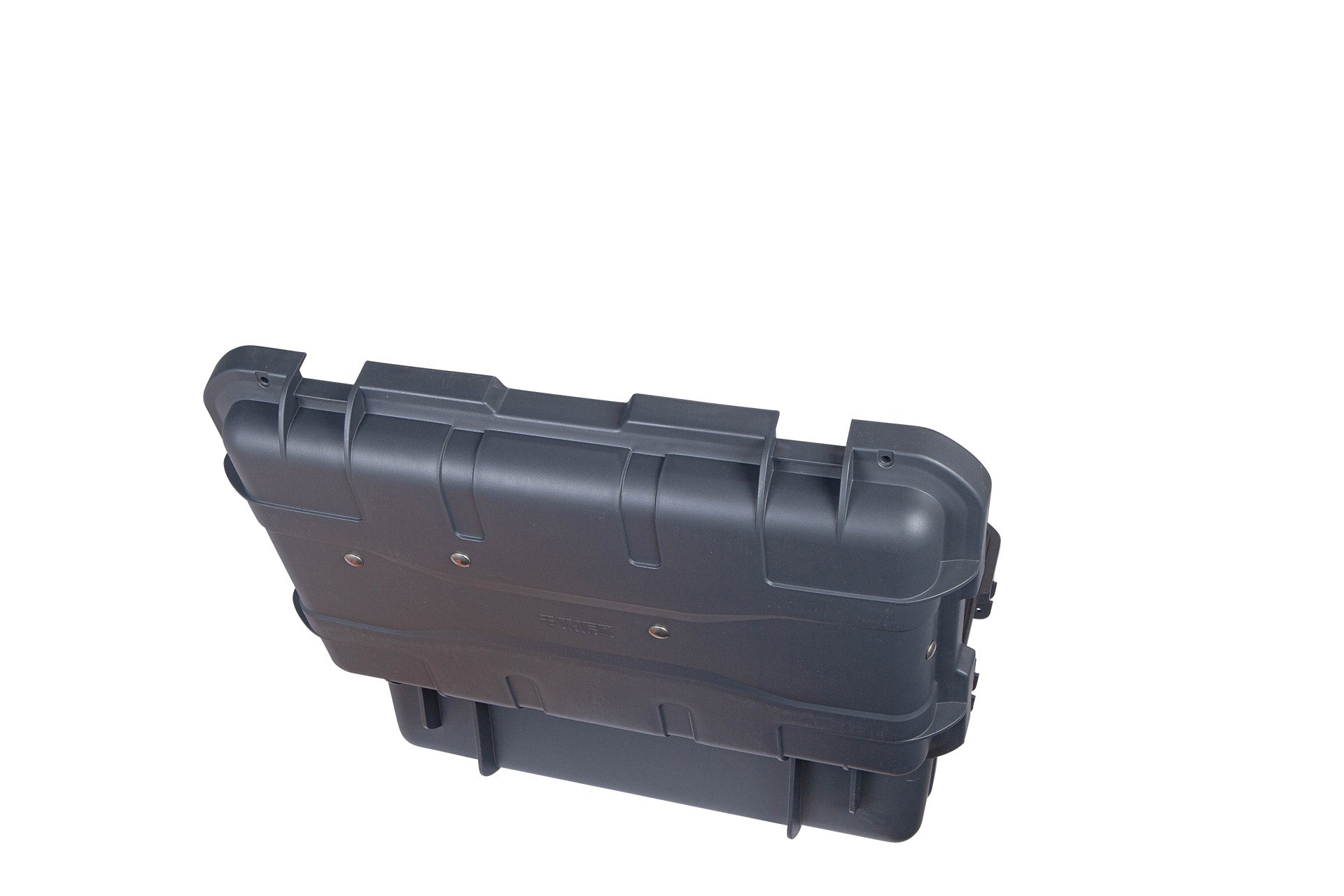

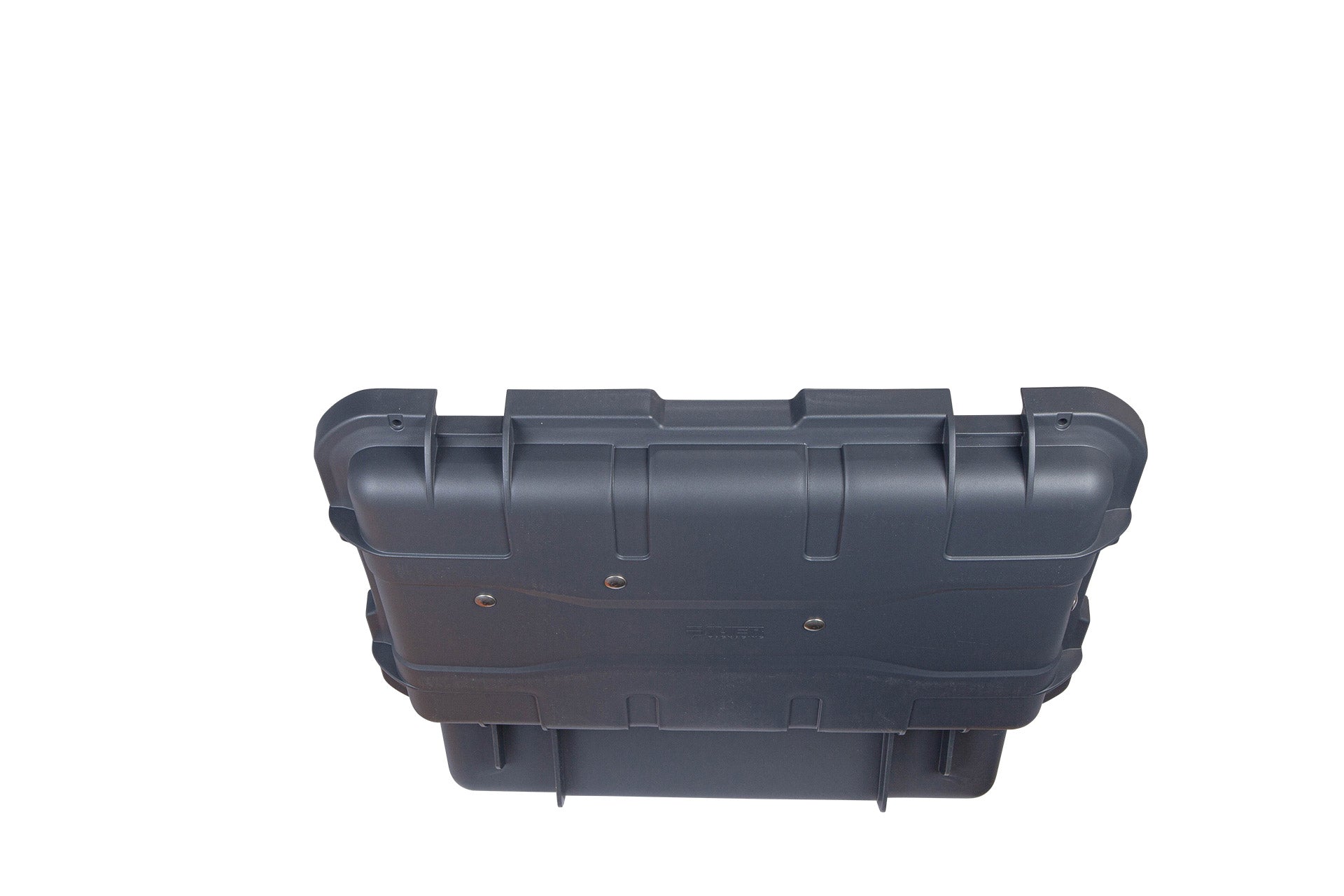

• Standard protective case with carrying handle
• Dimensions: 60 cm x 44 cm x 23 cm (l/w/h)
• 2 meter hose for control air
• Weight: approx. 16 kg

Connections (select according to gas type):

• G5/8″ – Air up to 21% oxygen content, 200/300 bar
• Nitrox M26x2 – Nitrox from 21% oxygen content, max. 200 bar
• 3/4″ oxygen (DIN 477-9) – Synthetic air/pure oxygen, max. 200 bar
• W21.8 (DIN 477-6) – Helium, argon, max. 200 bar
• W30x2 No. 59 (DIN 477-59) – Pure oxygen, 300 bar
• W30x2 No. 54 (DIN 477-54) – Helium, argon, 300 bar

⚠️ Important: When making connections, always ensure the selected fitting matches the gas being filled.
