Nano HP15 Compressor
- Regular price
- €1.190,00
- Sale price
- €1.190,00
- Regular price
-
SKU: 1995
📦⚠️ Nano HP15 Compressor ships within 6 weeks.

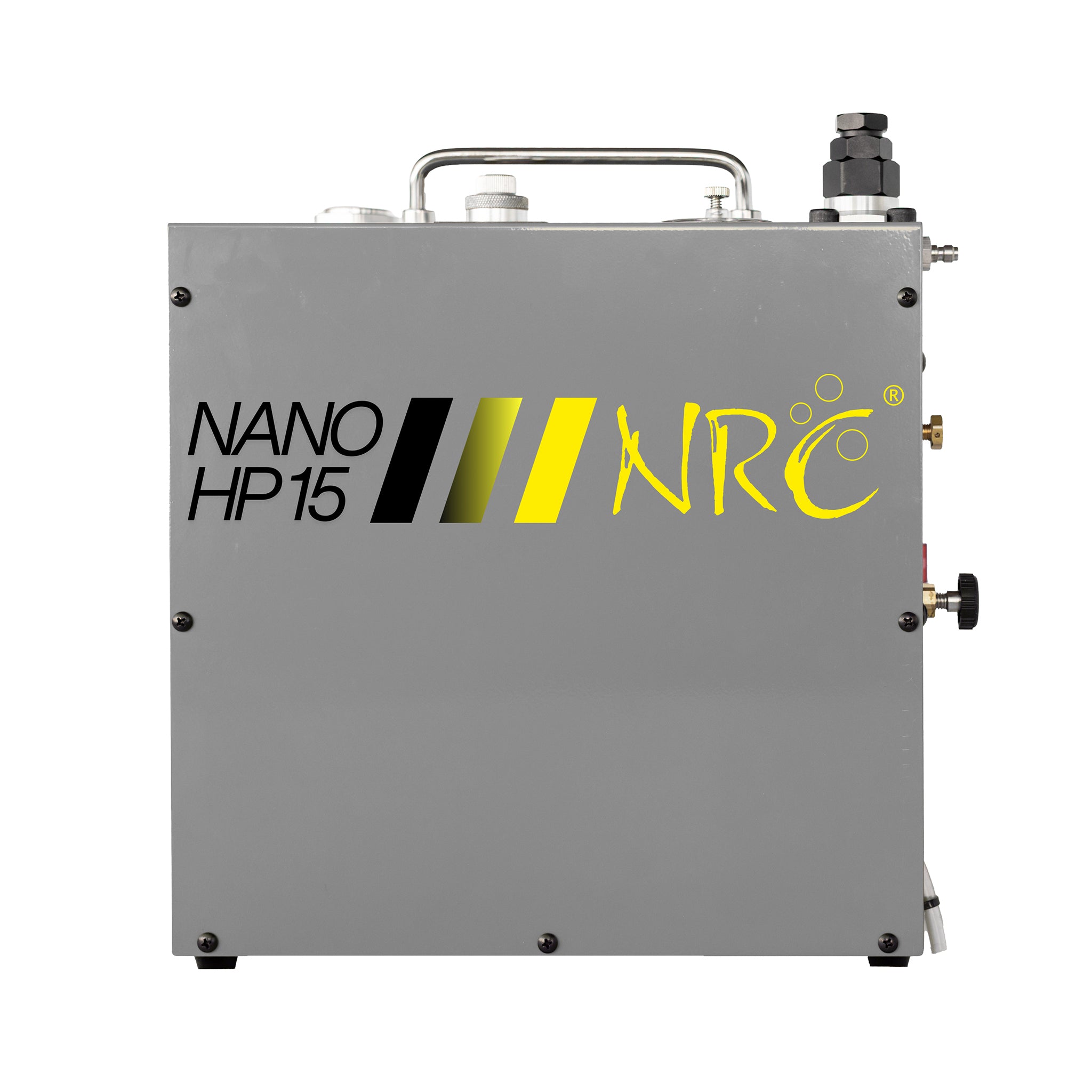

Nano HP15 Compressor
Probably the smallest high-pressure breathing air compressor in the world,
specially designed to fill small volumes with a noise level of only 65 dBA.
Equipped with automatic final pressure shut-off, an hour meter and a replaceable breathing air filter cartridge.
The compressor can be operated with either 110 volts, 220 volts or 12 volts.
The scope of delivery also includes a filling hose that can be attached directly to your Sailair cylinder with a quick coupling.
Standard features:
-Automatic final pressure shut-off
-2 safety pressure relief valves
-Hour meter
-Pressure maintenance valve
-Filling hose
-Manual drain valve
-Breathing air filter cartridge
-Temperature compensation table for filter cartridge service life
-Operating instructions
-Vent valve
-Connection cable
Technical Data:
-Electric Data: 110V / 220V / 12 V 350W 50/60Hz
-(max 30A on 12 Volt)
-65 dBA
-Max Pressure: 2900 PSI / 200 Bar
-Weight: 15 Kg
-Dimension: l/w/h 32 cm / 18,5 cm / 32 cm
-Fill Rate: 15l/min
Nano HP15 Filter Cartridge (Order No. 1998) – High-Performance Filtration
The Nano HP15 filter cartridge is engineered for reliable and efficient filtration in high-pressure compressed air systems. It ensures optimal air quality while protecting sensitive equipment from contaminants and moisture.
A key advantage of this filter is its temperature-dependent performance and service life, allowing precise maintenance planning based on real operating conditions.
Performance Based on Ambient Temperature
The number of minimum cylinder fillings (±5%) depends on both temperature and cylinder size:
| Ambient Temp (°C) | 1L | 3L | 7L | 10L | 12L |
|---|---|---|---|---|---|
| 10°C | 139 | 45 | 19 | 13 | 10 |
| 15°C | 104 | 34 | 14 | 9 | 8 |
| 20°C | 79 | 26 | 10 | 7 | 6 |
| 25°C | 62 | 20 | 8 | 5 | 4 |
| 30°C | 44 | 14 | 6 | 3 | 3 |
| 35°C | 33 | 10 | 4 | 2 | 2 |
| 40°C | 26 | 8 | 3 | 1 | 1 |
Technical Performance & Service Life
| Ambient Temp (°C) | Final Separation Temp (°C) | Humidity Content (g/m³) | Processable Air Volume Va (m³ at 200 bar) | Min. Filter Life (hours ±5%) |
|---|---|---|---|---|
| 10°C | 14–18 | 12–15.4 | 50–38 | 34 |
| 15°C | 19–23 | 16.3–20.6 | 36–29 | 26 |
| 20°C | 24–28 | 21.8–27.2 | 27–22 | 19 |
| 25°C | 29–33 | 28.8–34.6 | 21–17 | 15 |
| 30°C | 34–39 | 36.6–48.9 | 16–12 | 11 |
| 35°C | 40–44 | 51.1–63.6 | 11–9 | 8 |
| 40°C | 45–49 | 65.0–80.4 | 9–7 | 6 |
Key Features
-
High-efficiency filtration for high-pressure systems
-
Temperature-dependent performance for precise maintenance planning
-
Reliable removal of moisture and contaminants
-
Designed for demanding industrial and breathing air applications
-
Easy installation and replacement
Benefits
-
Ensures consistent air quality
-
Reduces risk of system damage
-
Optimizes operational efficiency
-
Minimizes downtime with predictable service intervals
Important Notes
Performance and service life strongly depend on ambient temperature and operating conditions. For optimal results, always use original NRC filter cartridges and follow recommended maintenance intervals.
