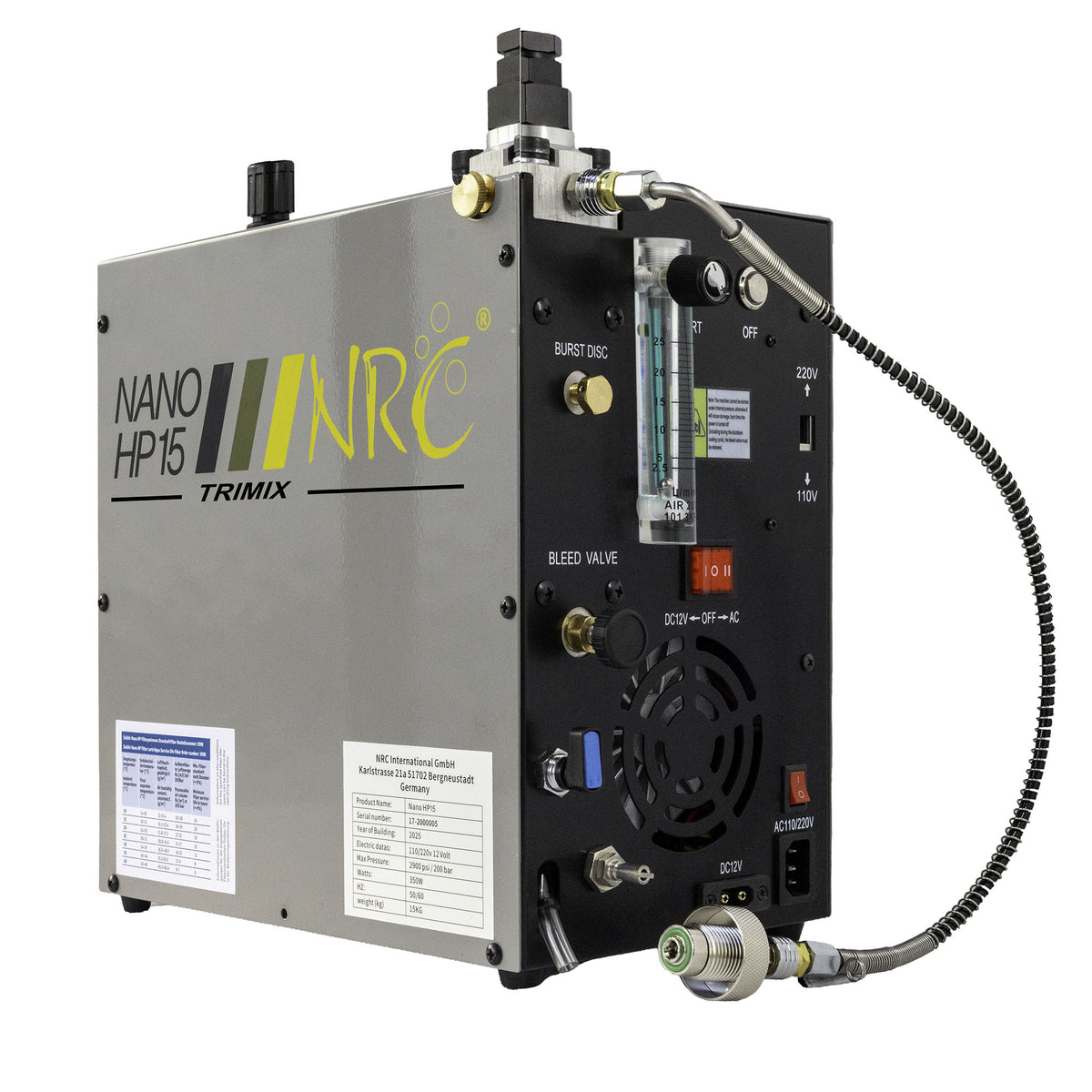

Nano HP15-TRIMIX Compressor
Compact. Oil-free. Water-cooled. Now with Trimix capability.
The Nano HP15-TRIMIX extends the capabilities of the Nano HP15 with an external gas inlet for compressing premixed Trimix and other compatible breathing gas mixtures with an oxygen content of up to 40%.
Designed for filling small cylinders, this compact, oil-free, water-cooled high-pressure compressor delivers 15 litres per minute at a noise level of just 65 dBA.
A selectable inlet allows operation with either ambient air or an external breathing gas supply connected through the front inflator port.
Equipped with automatic final-pressure shut-off, an hour meter and a replaceable breathing air filter cartridge, the Nano HP15-TRIMIX fills to a maximum pressure of 200 bar / 2900 PSI.
The compressor can be operated from a 110 V, 220 V or 12 V power supply. A filling hose with a quick coupling for direct connection to your Sailair cylinder is included.
Two Selectable Inlet Modes
Ambient Air Mode
The compressor draws in surrounding air and operates like the standard Nano HP15.
External Gas Mode — Inflator Port
The compressor draws premixed breathing gas from an external cylinder through the front inflator port. This allows remaining gas, to be transferred and compressed into a receiving cylinder.
Maximum oxygen content: 40%
The Nano HP15-TRIMIX compresses an existing gas mixture; it does not blend a new mixture.
How External Gas Operation Works
A diving regulator is connected to the supply cylinder. Its inflator hose connects to the inflator port on the front of the Nano HP15-TRIMIX, supplying gas at an intermediate pressure of approximately 10 bar.
The compressor’s inlet pressure regulator reduces this pressure to 2 bar. The setting must be checked and adjusted to 2 bar if necessary.
The gas then passes through the flow monitoring device, which must be set to 15 litres per minute, before entering the compressor.
The water-cooled compressor compresses the supplied gas to a maximum pressure of 200 bar / 2900 PSI and switches off automatically when the final filling pressure is reached.
Before filling, set the inlet selector ball valve to the required source:
- Inflator Port: for an external premixed breathing gas supply.
- Ambient Air: for standard air filling.
The supply cylinder and regulator must maintain the required inlet pressure and gas flow throughout filling.
Standard Features
- Oil-free, water-cooled compression
- Selectable inlet: ambient air or external breathing gas

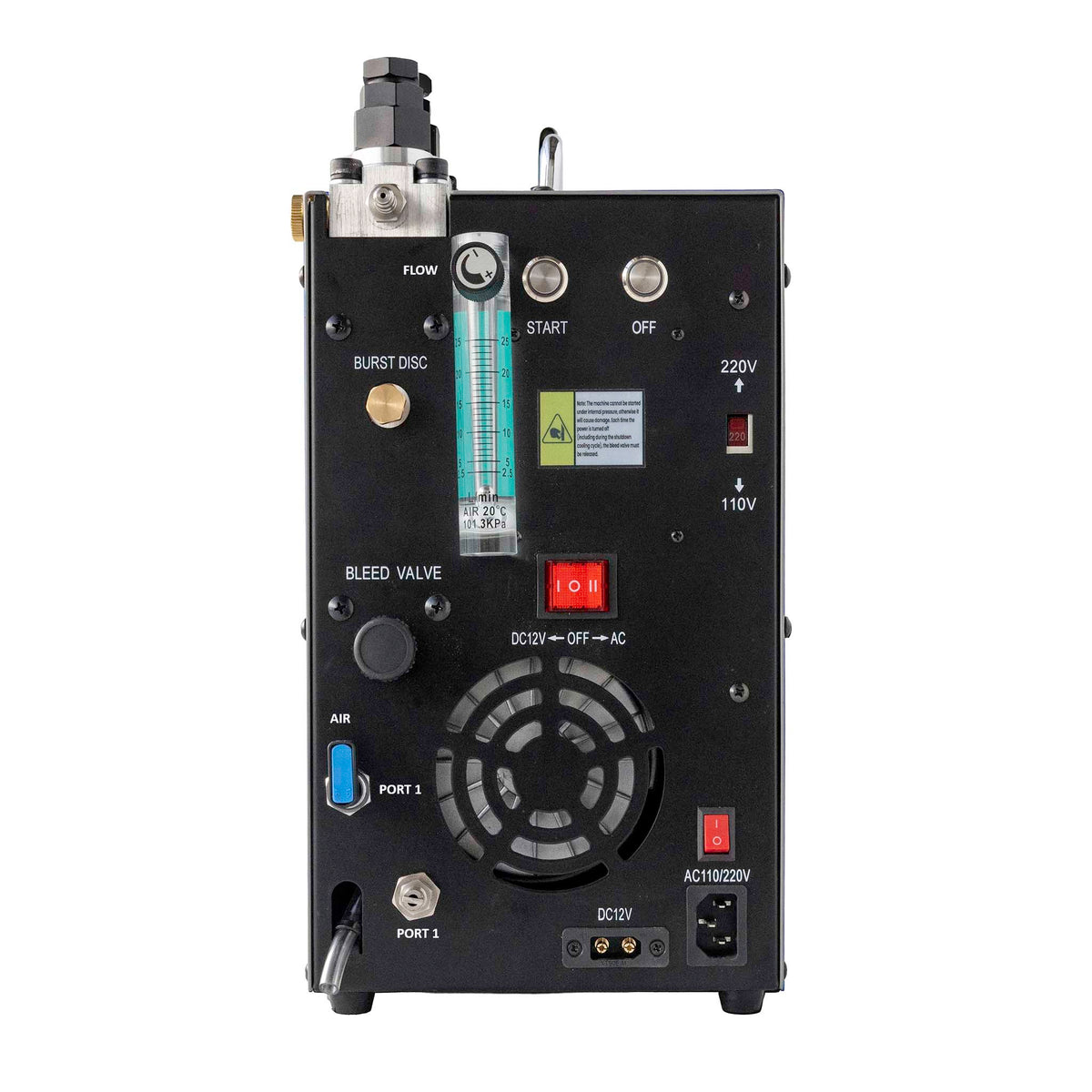

- Front inflator port for connection to a regulator inflator hose
- Inlet pressure regulator with a 2 bar setting
- Flow monitoring device with a 15 l/min setting
- Automatic final-pressure shut-off
- Two safety pressure relief valves
- Hour meter
- Pressure maintenance valve
- Filling hose with quick coupling
- Manual drain valve
- Replaceable breathing air filter cartridge
- Temperature compensation table for filter cartridge service life in ambient air operation
- Operating instructions
- Vent valve
- Connection cable
Technical Data
| Specification | Nano HP15-TRIMIX |
|---|---|
| Power supply | 110 V / 220 V / 12 V |
| Power consumption | 350 W |
| AC frequency | 50/60 Hz |
| Maximum current at 12 V | 30 A |
| Noise level | 65 dBA |
| Maximum filling pressure | 200 bar / 2900 PSI |
| Filling rate | 15 l/min |
| Weight | 15 kg |
| Dimensions, L × W × H | 32 × 18.5 × 32 cm |
| Cooling | Water-cooled |
| Compression | Oil-free |
| Inlet selection | Ambient air / front inflator port |
| External supply intermediate pressure | Approximately 10 bar |
| Regulated inlet pressure | 2 bar |
| Flow monitoring setting | 15 l/min |
| Maximum oxygen content of supplied gas | 40% |
Nano HP15 Filter Cartridge — Order No. 1998
Filtration for Ambient Air Operation
The replaceable Nano HP15 filter cartridge removes moisture and contaminants from compressed air during ambient air operation.
Its capacity and service life depend on ambient temperature and operating conditions. The tables below support maintenance planning for Ambient Air Mode only.
These filter capacity and service life tables do not apply to Trimix operation using an external gas supply, as the supplied gas must already meet breathing gas quality requirements before entering the compressor.
Cylinder Filling Capacity — Ambient Air Mode Only
Minimum number of cylinder fillings (±5%), depending on ambient temperature and cylinder size:
| Ambient Temperature (°C) | 1 L | 3 L | 7 L | 10 L | 12 L |
|---|---|---|---|---|---|
| 10°C | 139 | 45 | 19 | 13 | 10 |
| 15°C | 104 | 34 | 14 | 9 | 8 |
| 20°C | 79 | 26 | 10 | 7 | 6 |
| 25°C | 62 | 20 | 8 | 5 | 4 |
| 30°C | 44 | 14 | 6 | 3 | 3 |
| 35°C | 33 | 10 | 4 | 2 | 2 |
| 40°C | 26 | 8 | 3 | 1 | 1 |
Technical Performance and Service Life — Ambient Air Mode Only
| Ambient Temperature (°C) | Final Separation Temperature (°C) | Humidity Content (g/m³) | Processable Air Volume Va (m³ at 200 bar) | Minimum Filter Life (hours ±5%) |
|---|---|---|---|---|
| 10°C | 14–18 | 12–15.4 | 50–38 | 34 |
| 15°C | 19–23 | 16.3–20.6 | 36–29 | 26 |
| 20°C | 24–28 | 21.8–27.2 | 27–22 | 19 |
| 25°C | 29–33 | 28.8–34.6 | 21–17 | 15 |
| 30°C | 34–39 | 36.6–48.9 | 16–12 | 11 |
| 35°C | 40–44 | 51.1–63.6 | 11–9 | 8 |
| 40°C | 45–49 | 65.0–80.4 | 9–7 | 6 |
Filter Features
- Efficient removal of moisture and contaminants
- Temperature-dependent service life for maintenance planning
- Replaceable cartridge for straightforward servicing
- Designed for high-pressure breathing air applications
Maintenance Notes
Filter performance and service life in ambient air operation depend on temperature and operating conditions. Always use original NRC filter cartridges and follow the operating instructions and recommended maintenance intervals.
