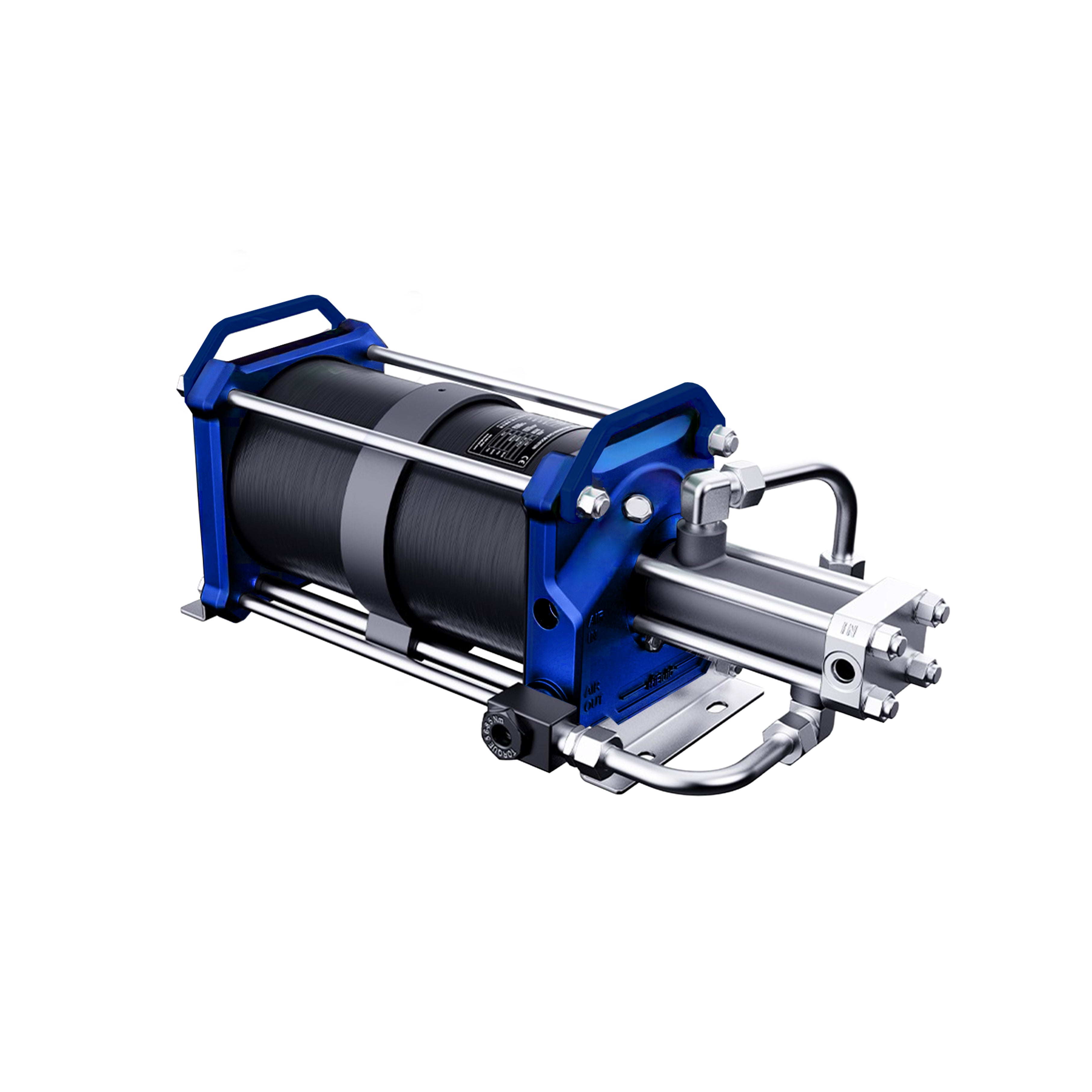

NGB-30D-2 Double-Drive Double-Acting Gas Booster

Delivery Time 8-10 Weeks

The NGB-30D-2 is an air-driven gas booster designed for higher flow rates with inlet gas pressure assisting the air drive in each direction.

• Configuration: Double-drive, double-acting
• Pressure ratio: 1:60
• Displacement per cycle: 120 ml
• Max. outlet pressure: 480 bar / 6960 psi
• Min. inlet pressure: 20 bar / 290 psi
• Max. inlet pressure: 480 bar / 6960 psi
• Drive inlet: NPT1/2
• Medium inlet: HP1/4
• Medium outlet: HP1/4
• Dimensions (A x B x C): 805 x 275 x 230 mm
• Weight: 30 kg

Suitable for air drive pressure (P_L) from 3 to 8 bar (43.5 to 116 psi).

Installation and operation must be carried out by qualified personnel. Medium compatibility should be verified for the intended gas before use.
