Type 220-2 Tec Booster Pump Set | 232 Bar Final Pressure

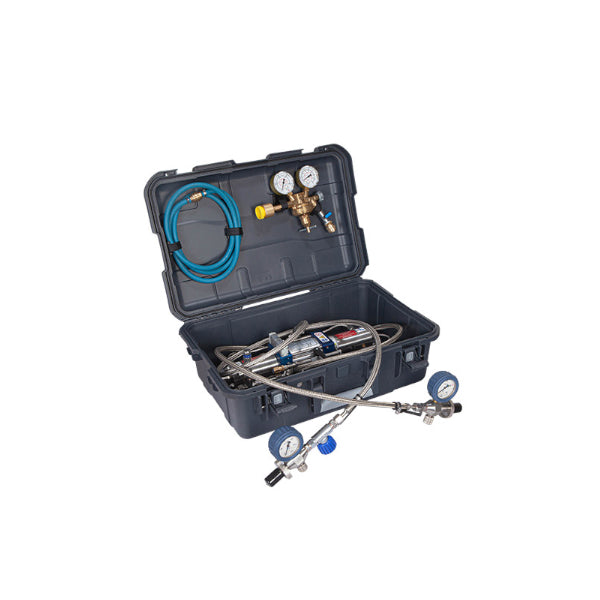

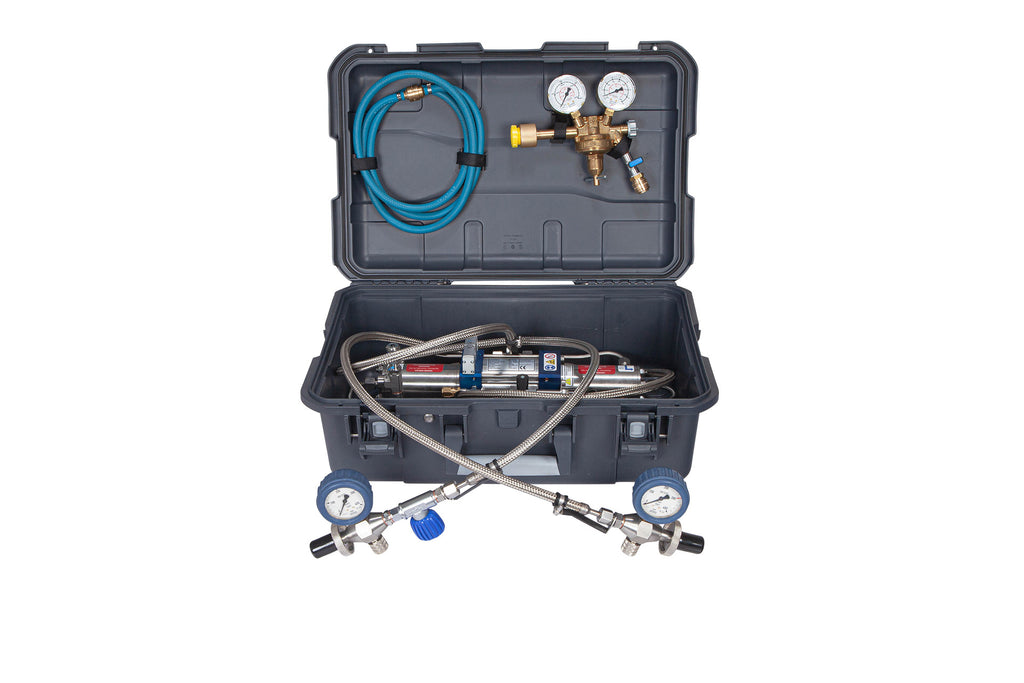

The Tec-Booster 220/2 comes as a ready-to-connect set in a waterproof protective case.

Offering reliable performance at 232 bar final pressure. Compact, durable, and designed for professional applications, this set ensures safe and efficient gas handling.

Key Features:

• Removal hose (1.65 m, stainless steel corrugated hose):
  • Standard oxygen analog Wika manometer class 2.5 with rubber protection
  • Vent valve
  • Standard hose rupture protection
• Filling hose (1.65 m, stainless steel corrugated hose):
  • Standard industrial needle valve
  • Standard oxygen analog Wika manometer class 2.5 with rubber protection
  • Standard hose rupture protection

• Pressure reducer for control air: G5/8″ 200 bar
• 2 m hose for control air
• Protective waterproof case with carrying handle

  • Case dimensions: 60 × 44 × 23 cm (L × W × H)

• Weight: approx. 16 kg

• Connection Options (please select):
  • G5/8″ – suitable for air up to 21% O₂, 200/300 bar
  • M26x2 – suitable for Nitrox from 21% O₂, max. 200 bar
  • 3/4″ Oxygen (DIN 477-9) – suitable for synthetic air/pure oxygen, max. 200 bar
  • W21.8 (DIN 477-6) – suitable for helium, argon, max. 200 bar
  • W30x2 No. 59 (DIN 477-59) – suitable for pure oxygen, 300 bar
  • W30x2 No. 54 (DIN 477-54) – suitable for helium, argon, 300 bar



⚠️ Important: Always ensure connections are compatible with the gases being filled.
